XPOtool Set of 2 rear lights

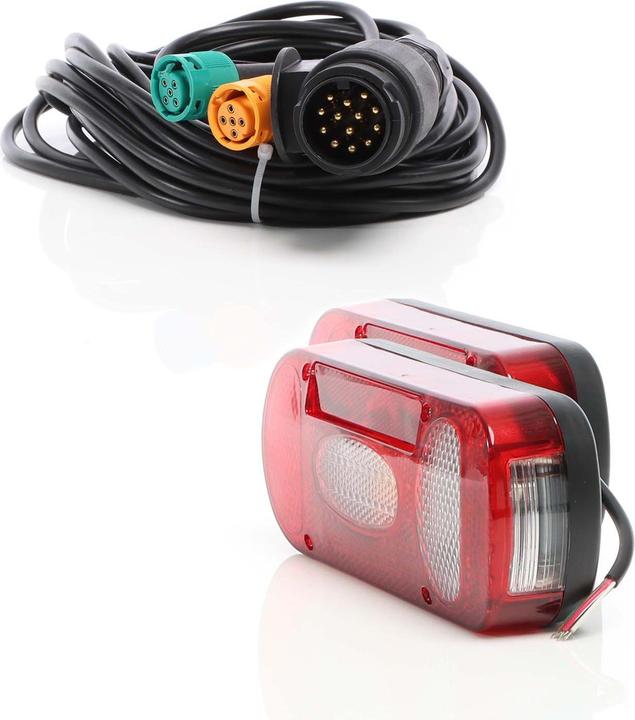

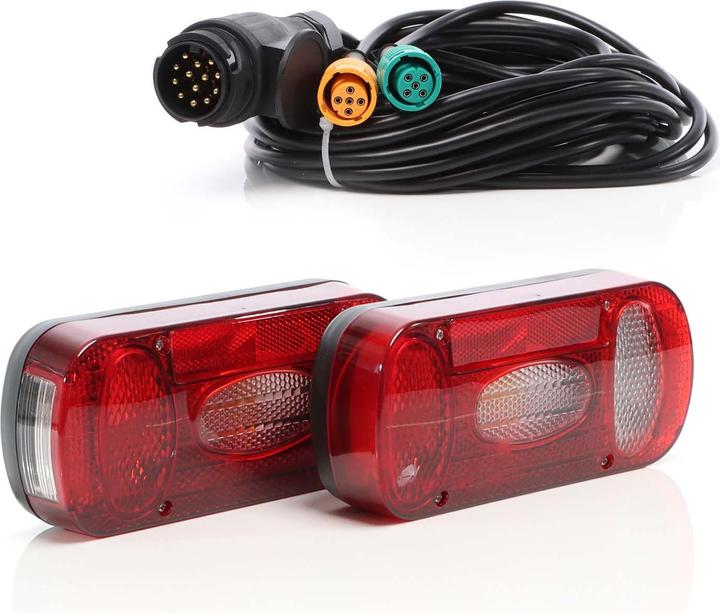

The set includes two tail lights and the corresponding trailer cable.

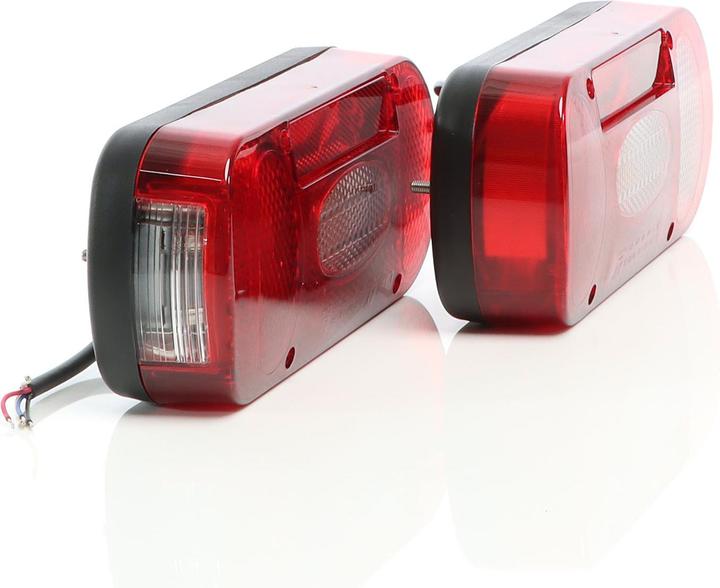

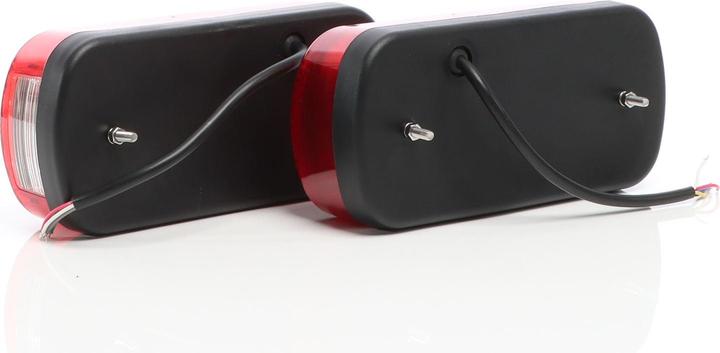

With the XPOtool tail lights, trailers, caravans, or other towed vehicles are clearly visible even at night. The two lights measure 220 x 100 x 57 mm and are equipped with a 20 cm cable connection.

The two tail lights feature a rear light, a brake light, a turn signal, and a fog tail light. Additionally, there is an integrated license plate light on the tail lights as well as a reflector. The lights are complemented by a reverse light with a T.1 reverse light socket.

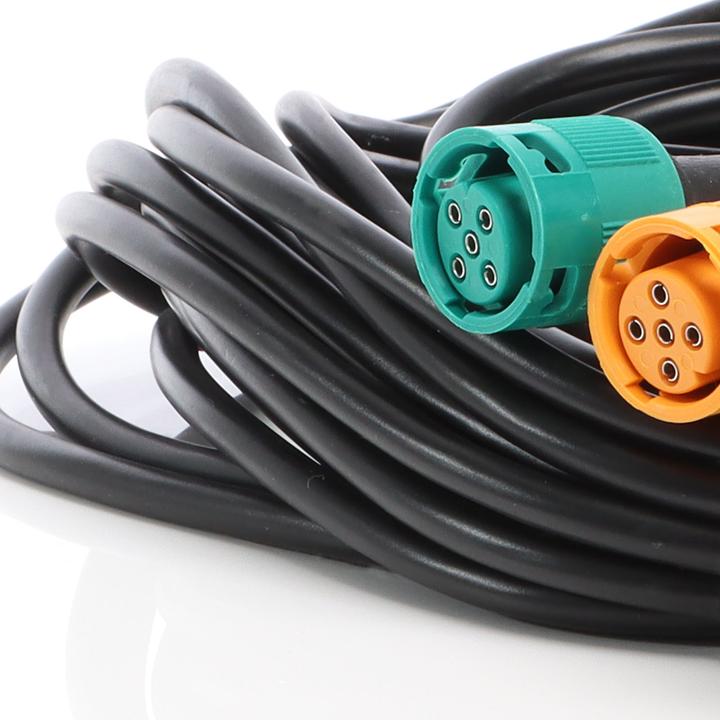

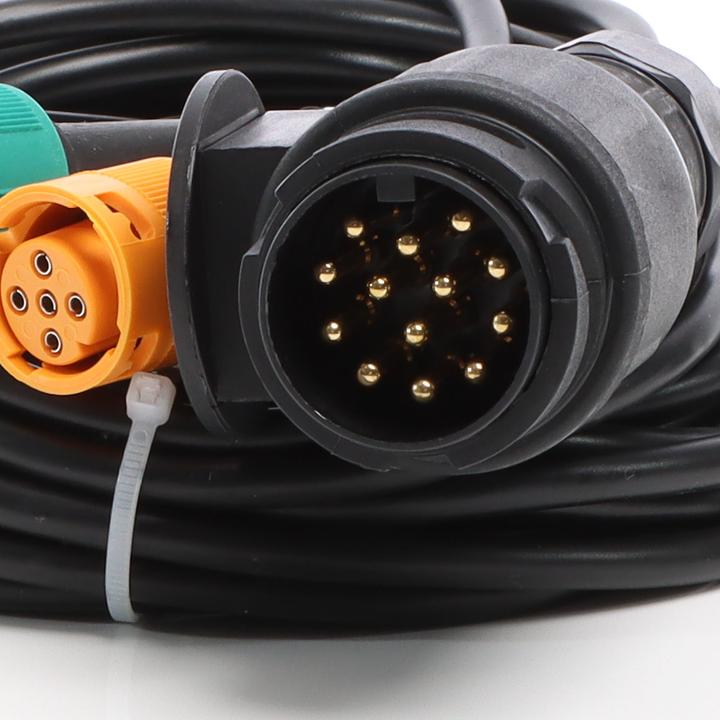

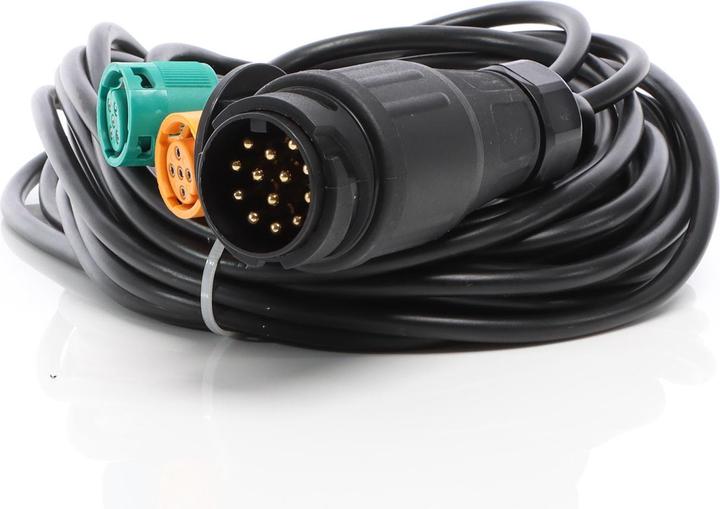

The 13-pin trailer cable from XPOtool is 5 m long and has two 5-pin connectors in green and yellow. The cross-section of the wires is 5 mm². This connection cable allows you to connect trailers, caravans, or other towed vehicles with compatible lights (not included).

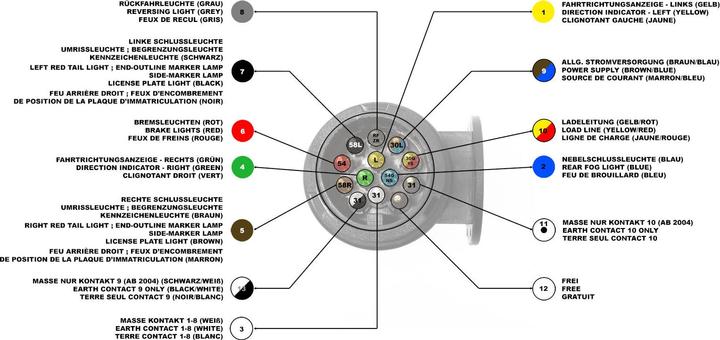

The pin configuration of the seven poles is as follows:
No. 1: Left turn signal
No. 2: Fog tail light
No. 3: Ground for pins 1-8
No. 4: Right turn signal
No. 5: Right tail light, side marker light: clearance light, license plate light
No. 6: Brake light
No. 7: Left tail light, side marker light: clearance light, license plate light
No. 8: Reverse light
No. 9: General power supply
No. 10: Charging line
No. 11: Ground for pin 10 (from 2004)
No. 12: Free
No. 13: Ground for pin 9 (from 2004).
