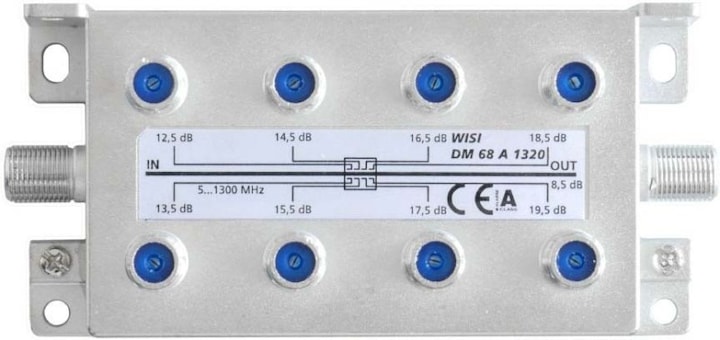

WISI Branch DM 68 A 1320 8-fold 12.5...15.5dB

Wisi Splitter 8f. DM 68 A 1320

Manufacturer: Wisi
Description: 8-way splitter
Frequency: 5 - 1300 MHz
Max. branch/distribution attenuation: 19.5 dB
Max. pass-through attenuation: 9.5 dB
Number of branches: 8
Number of outputs: 1
Remote powering compatible: no

The DM68A 1320 is an asymmetric 8-way splitter with a branch attenuation of 13 dB to 20 dB, designed for use in distribution systems with a main line. With a frequency range up to 1.3 GHz, the splitter is ideally suited for DOCSIS 3.1 applications. The white bronze-coated housing provides very high shielding properties of class A (+10 dB) and ensures interference-free signal transmission in reception and distribution systems. Due to the continuously increasing multimedia content, high intermodulation resistance is very important, and the DM68A 1320 meets the requirements according to EN 60728-4.
