Quantity discount
Lightwin Network cable
F/FTP, CAT6, 5 mFree shipping starting at 50.–
Cat6 cables are designed for operating frequencies up to 250 MHz. They are used for signal transmission with high data transfer rates (1 Gbps). Due to the high signal frequencies, careful installation and assembly are particularly important, especially at the connection points of the wires. The individual wire pairs in Cat6 are twisted at different tightness, which further reduces susceptibility to interference compared to Cat5e. Application areas for Cat-6 cables include voice and data transmission, as well as multimedia and ATM networks. Even more powerful are cables according to Cat6e (500 MHz) and Cat6a (625 MHz).
A significant advantage of slim patch cables is their use in cabling racks and 48-port switches. Their extremely thin design and high flexibility help avoid cable clutter, maintaining a clear overview.

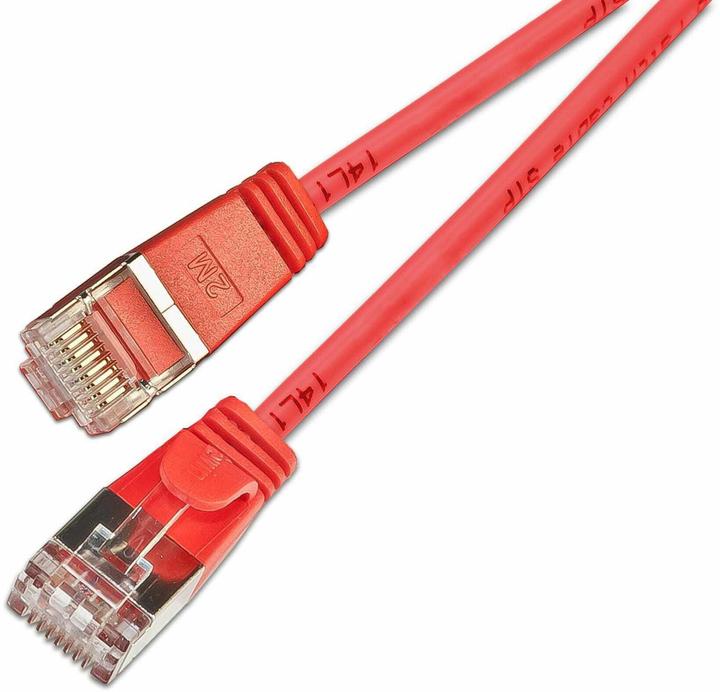

A Wirewin Cat6 slim patch cable features a flexible and wide connector protection as well as length markings on both ends. This allows for better organization in your distribution cabinets. They are the optimal solution for connecting IP phones to your network. With their short connector and flexibility, these cables are ideally suited for this application. Despite their extremely thin design, Power over Ethernet supply for IP phones is also possible through these cables. Additionally, the cables are no longer flat as usual – they now have a round shape.
AWG36
The AWG (American Wire Gauge) system is based on the manufacturing process of wires and indicates the conductor thickness of the copper wire. AWG36 corresponds to a conductor cross-section of 0.0127 mm².
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 5599786 |
Manufacturer | Lightwin |
Category | Network cables |
Manufacturer no. | PKW-LIGHT-STP-K6 5.0 RT |
Release date | 12.5.2015 |
Cable colour | Red |
Material | Polyvinyl chloride (PVC) |
Material of the isolation | Polyvinyl chloride |
Connection A | RJ45 |
Connection B | RJ45 |
Cable Application | Network |
Cable design | Flat ribbon cables |
Plug type | Flat |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 36 |
Patch cable type | Copper cable |
Patch cable Features | Handle protection |
Max. data transfer rate | 0.13 GB/s |
Cable category | CAT6 |
Contact assignment | straight |
Shield | F/FTP |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Only 4mm cable diameter |
Length | 5 m |
Width | 120 mm |
Depth | 135 mm |
Weight | 80 g |
