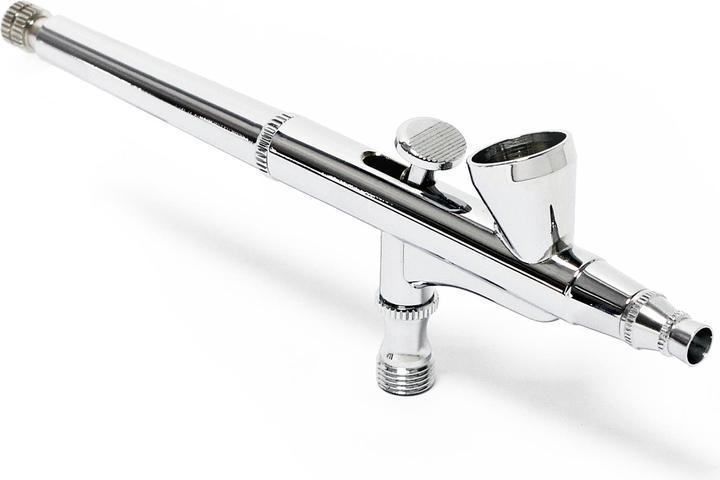

Wiltec Airbrush Gun Type 136 double action function

This professional airbrush gun is suitable not only for professional users. The model is delivered with a nozzle (nozzle diameter 0.30 mm) and is therefore also suitable for coarser pigmented colors and paints. The regulation of the color-air mixture is achieved through the double-action function. The desired color flow rate can be adjusted using the adjustment screw at the end of the grip.

Our airbrush guns provide an excellent spray pattern and are made entirely without plastic parts. They are fully disassemblable for easier cleaning.

The connection to a compressor is made via a 9.51 mm (⅛″) external thread directly on the gun.

Explanation of the double-action function (DA):

In a single-action airbrush, the operating lever only regulates the amount of air, while the amount of color is set with another control. In a double-action airbrush, this is done with one lever: by pressing down the lever, the air supply is regulated, and by simultaneously pulling back the lever, the amount of color is varied. When the operating lever is pressed down, compressed air flows out at the front of the needle cap. Only by pulling the operating lever back does color come out of the nozzle and is sprayed onto the object by the compressed air. The further the operating lever is pulled back, the more color is sprayed. While this requires some practice, it is advisable to use a double-action airbrush from the start. The maximum amount of color can be adjusted at the knurled screw at the back (color quantity adjustment screw).

Note:
At the beginning of the spraying process: Start with the air first, then the color!
At the end of the spraying process: Remove the color first, then the air!

Airbrush delivery contents:
• Airbrush gun 136 in storage box
• Color cup (2 ml)
• Nozzle wrench
• 15 ml pipette.
