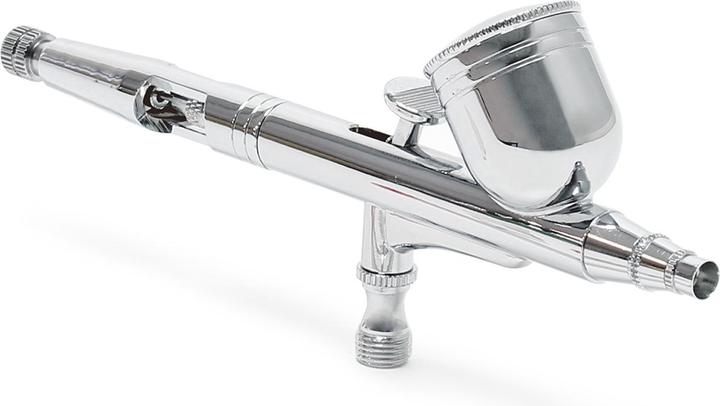

Wiltec Airbrush Gun Type 130T double action function

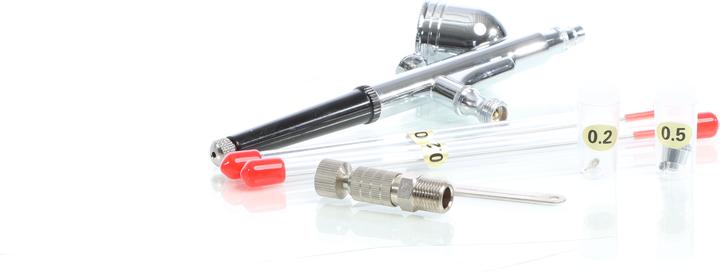

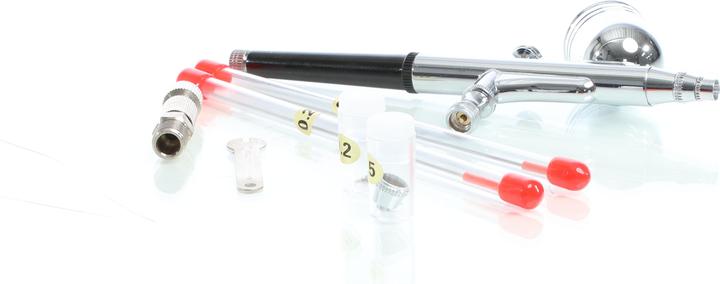

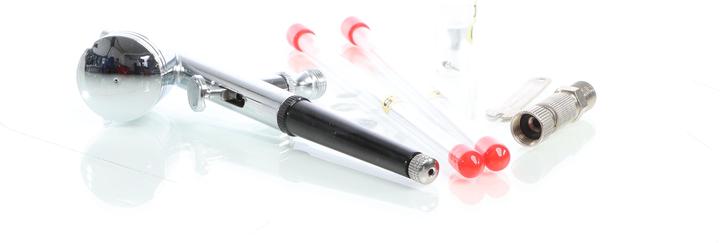

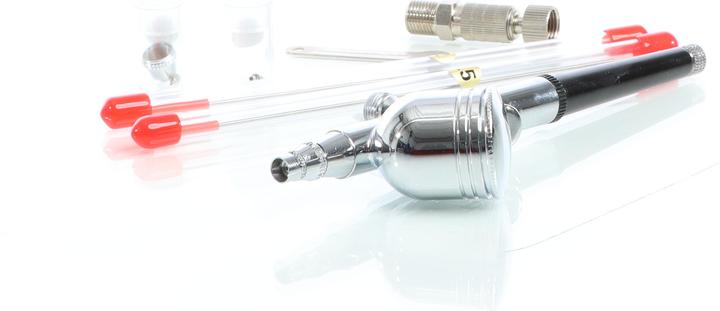

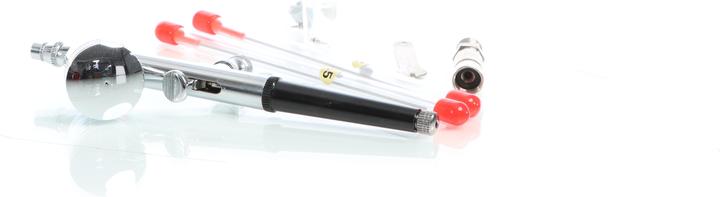

This professional airbrush gun is suitable not only for professional users. The model comes with three nozzles (nozzle diameters of 0.2, 0.3, and 0.5 mm) and is thus also suitable for coarser pigmented colors and paints. Thanks to the generously sized paint cup with a capacity of 7 ml, larger projects and priming are no problem. The regulation of the paint/air mixture is achieved through the double-action function. The desired paint flow can be adjusted using the adjustment screw at the end of the handle.

Our airbrush guns provide an excellent spray pattern, are made entirely without plastic parts, and can be completely disassembled for easier cleaning.

The connection to a compressor can be made via a 9.51 mm (⅛″) external thread directly on the gun.

Explanation of the Double-Action Function (DA):

In a single-action airbrush, the air volume is regulated with the control lever, while a different control adjusts the paint volume. In a double-action airbrush, this is done with one lever: pressing down on the lever regulates the air supply, while pulling back the lever (simultaneously) varies the paint volume. When the control lever is pressed down, compressed air flows out at the front of the needle cap. Only by pulling the control lever back does paint come out of the nozzle and is sprayed onto the object by the compressed air. The further the control lever is pulled back, the more paint is sprayed. While this does require some practice, nothing prevents you from regulating the air volume via the compressor, making it advisable to use a double-action airbrush from the start. The maximum paint volume can be adjusted at the knurled screw at the back (paint volume adjustment screw).
