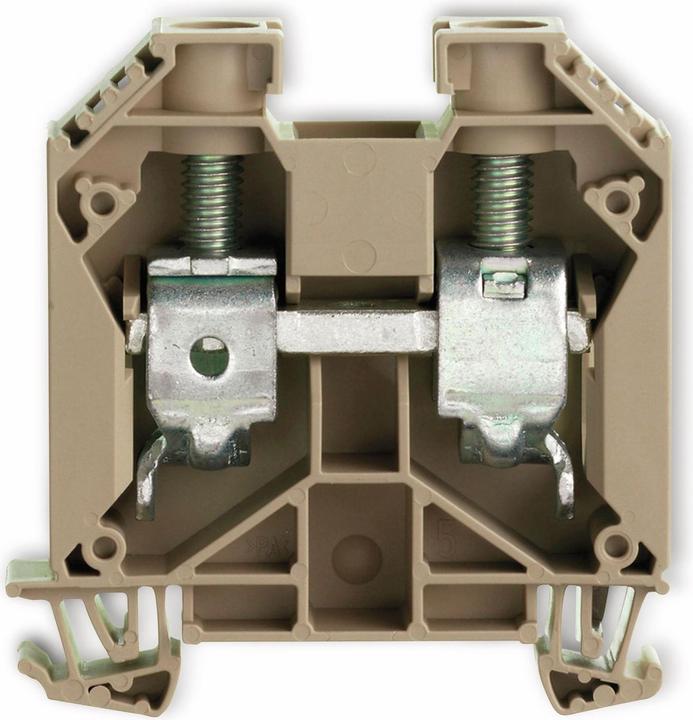

Weidmüller WDU 35 standard terminal,125A

Series: WDU
Wire size: 12 → 2 AWG
Cable cross-section: 35 mm²
Color: Brown
Rated current: 125 A
Number of levels: Single
Connection type: Screw
Operating voltage: 1 kV
Minimum operating temperature: -50 °C
Maximum operating temperature: +120 °C
Approval for hazardous areas: ATEX

CSA approval, UL approval, SEV, DEMKO, NEMKO, Lloyd's Register of Shipping, SETI, KEMA, Reg. of the USSR. Terminal blocks of the W series. A significant advantage of the W series is the choice between plug (ZQV) or screw (WQV) cross-connections within a modular terminal block. This offers considerable time savings compared to other screw terminals. Features and benefits: Terminal blocks in a range of colors, screw and plug cross-connection system for screw terminals. Product application information: Practical components for building your terminal block with simple time-saving options. Thanks to the unique patented design, you can now easily connect two conductors of the same cross-section at the same connection point. A great solution when you want to link your assemblies without risking electric shocks or loose cables. Simply position your terminal block, screw it in, and secure it.
