Weidmüller SLA 14/90 4.5SN OR BX Male connector Total number of poles 14 No. of rows 1 No. of poles Total
Product details

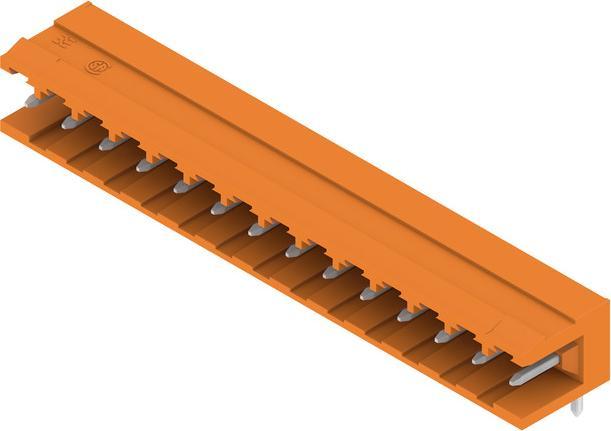

Weidmüller PCB Connector SLA 14/90 4.5SN OR
Manufacturer: Weidmüller
Designation: PCB Connector
Type: SLA 14/90 4.5SN OR
Connection Type: Flexible PCB Connector
Connector Design: Fixed Connector
Contact Design: Pin
Number of Poles: 14
Number of Contact Rows: 1
Contact Pitch: 5.08 mm
Connection Pitch: 5.08 mm
Angle PCB/Contact: 0°/180° (horizontal)
Rated Current In: 16 A
Rated Voltage: 320 V
Rated Impulse Voltage: 4 kV
Overvoltage Category: II
Pollution Degree: 2
Contact Coating Material: Tin
Electrical Connection Type: THR Connection
Pin Length: 4.5 mm
Insulator Material: Thermoplastic
Housing Color: Orange
Flammability Class of Insulating Material according to UL 94: V0
Operating Temperature: -50 to 120 °C
PCB Mounting Type: Other
Mounting Method: Soldering
Strapping Type: Other
Weidmüller PCB Connector SLA 14/90 4.5SN OR: Additional Details
Plug-in PCB connection with innovative connection technology for secure and intuitive handling.
