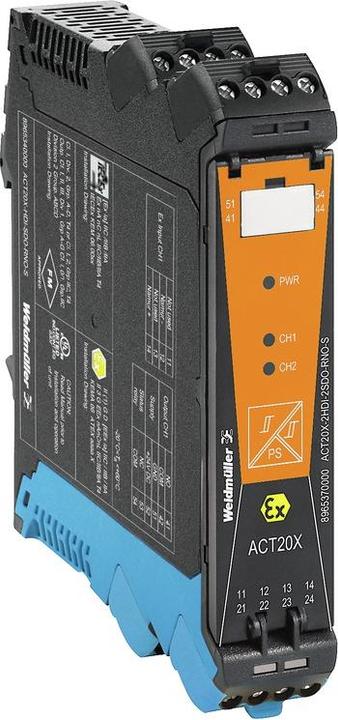

Weidmüller Signal Isolator, ACT20X, HUI, SDO-RNC-S

Input type = NAMUR sensor
Output type = Current
Signal shaper type = NAMUR sensor to current
Input range = 8 V dc
Output range = 2 A
Supply voltage = 19.2 → 31.2 V
Mounting type = DIN rail
Sensor compatibility = NAMUR sensor
Operating temperature min = -20°C
Operating temperature max = +60°C
Hazardous area approval = IECEx

ACT20X HDI-SDO-RNC/RNO-S/ 2HDI-2SDO-RNO-S signal isolators. The ACT20X HDI-SDO-RNC-S/HDI-RNO-S/ 2HDI-2SDO-RNO-S isolators with amplifier have been specially designed for recording NAMUR sensor signals and digital switching signals originating from hazardous area 0. With 11 mm width per channel, these disconnectors are the ideal device for use in electrical cabinets as they require little space. DIN rail mounting Width: 22.5 mm N.O. or N.C. options available Screw connection, removable terminal block Alarm contacts in case of defect 1-channel and 2-channel options IP20 protection.
