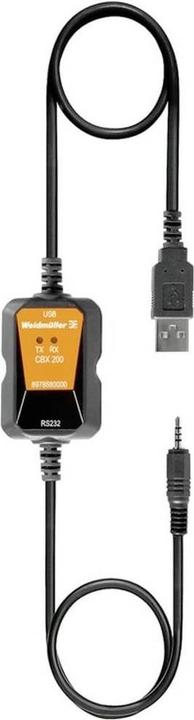

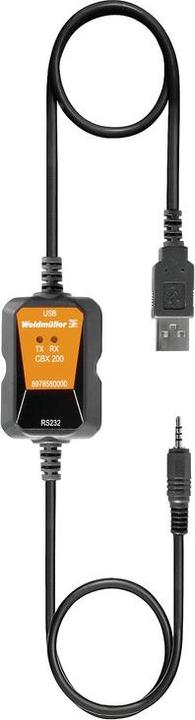

Weidmüller Signal Isolation Cable, USB, CBX200

Input type: USB 2.0
Output type: RS232
Signal converter type: USB 2.0 to RS232
Input range: 1.6 to 5.6 V
Supply voltage: 1.6 to 5.6 V
Mounting type: Panel mount
Sensor compatibility: ACT20X
Operating temperature min: -10°C
Operating temperature max: +50°C
Compliance with standards: EAC, RoHS

Accessories for the ACT20 series of isolators include terminal blocks for use with ACT20X isolators, which provide external compensation for cold junctions. Cold junction compensation is necessary when thermocouples are used for temperature measurement. A USB interface cable is also available for PC-based configuration and calibration of universal signal isolators such as ITXPlus, WAVE, TTA, and the ACT20 series. The cable features a status LED that indicates the transmission and reception mode.
