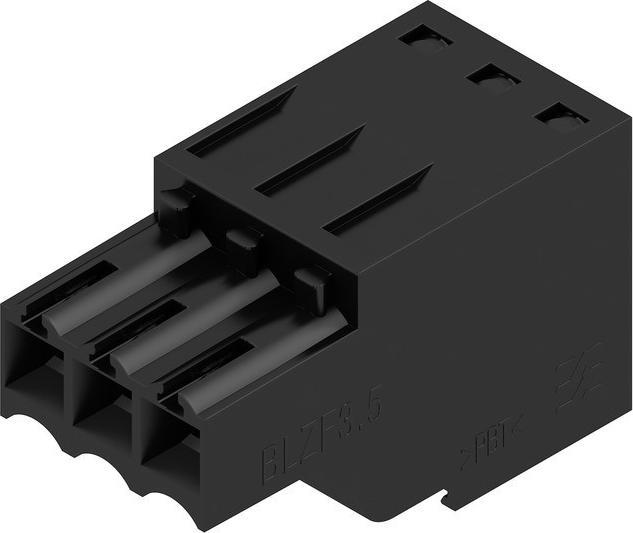

Weidmüller Omnimate 3.50mm 3w female plug black

Series: BL
Number of outlets: 3
Mounting type: Cable mounting
Pitch: 3.5 mm
Rated current: 14.5 A
Connection type: Terminal
Wire size: 28 → 16 AWG
Material: PBT
Operating voltage: 320 V
Minimum operating temperature: -25 °C
Maximum operating temperature: +100 °C
Enclosed: Yes
Contact material: Copper alloy
Contact plating: Tin

Typical order numbers for corresponding pin headers are 171-499 (180°) and 171-578 (90°). Connectors with tension clamp for cable mounting, standard contact density, black. 180° connection terminal blocks with threaded plugs feature a clamp fork screw system, allowing you to connect wires with a straight outlet direction in a 3.5 mm pitch. The clamp fork is made of hardened steel with a zinc-chromium coating. The terminals are two-part, and the current-carrying components are made of a tin-plated copper alloy. Features and benefits: threaded plug, screw connection, rated current refers to the nominal cross-section and minimum number of poles, easy wiring thanks to fork clamp connection.
