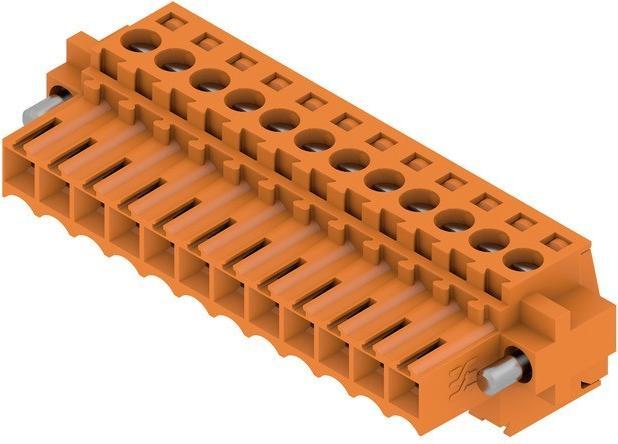

Weidmüller Omnimate 3.50mm 12w female plug flange

Ratings
BrandMore from Weidmüller
Delivered between Sat, 30.5. and Tue, 16.6.
Only 2 pieces in stock at supplier
free shipping

Product details

Series: BL
Number of outlets: 12
Mounting type: Cable mounting
Pitch: 3.5 mm
Rated current: 17 A
Connection type: Screw
Wire size: 28 → 14 AWG
Material: PBT
Color: Orange
Operating temperature min.: -25 °C
Operating temperature max.: +100 °C
Encapsulated: Yes
Contact material: Copper alloy
Contact plating: Tin

Connector with screw terminal for cable mounting, standard contact density, with flange. Terminal blocks with flange and threaded sockets feature a clamping fork screw system, allowing you to connect wires with a straight outlet orientation in a 3.5 mm pitch. The clamping fork is made of hardened steel with a zinc-chromium coating. The terminals are two-part, and the current-carrying components are made of a tinned copper alloy. Features and benefits: threaded socket, screw connection, rated current refers to the nominal cross-section and minimum number of poles, easy wiring thanks to fork terminal connection.

Key specifications

Cable + connector type
Plug connectors

General information

Item number
9951100
Manufacturer
Weidmüller
Category
Cables + Plugs
Manufacturer No.
BL 3.50/12/180F SN O -1606740000
Release date
22.10.2018

Colour

Colour
Orange

Material

Material group
Plastic
Material
Plastic, POLYAMIDE, Polybutylene terephthalate

Cable + Connector Features

Cable + connector type
Plug connectors
Temperature
-50 - 100 °C
Max. temperature
100 °C
Min. temperature
-50 °C
mounting type
Cable installation
Number of cores
12x

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 2.–

Scope of delivery

Items per sales unit
1 pcs.

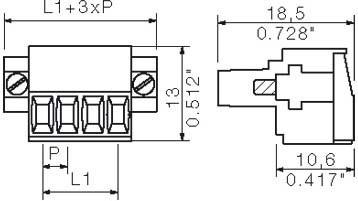

Product dimensions

Length
1.85 cm
Width
4.90 cm
Height
1.30 cm
