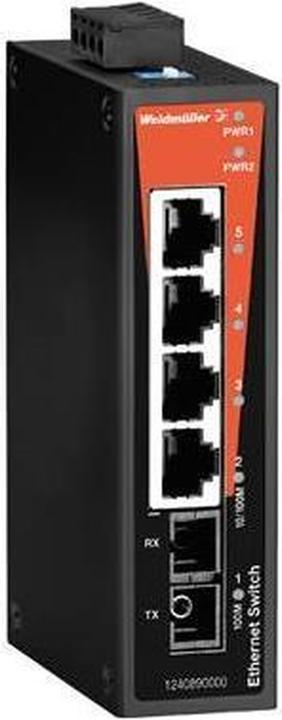

Weidmüller Network Switch Unmanaged, Fast Ethernet

For use with: Ethernet network
Bus type: Ethernet
Operating temperature min.: -10°C
Operating temperature max.: +60°C

Management-free fast Ethernet switches - Basic line. Management-free Ethernet switches from the Basic Line series connect the nodes and enable communication. These switches are the simplest active network components. They do not require configuration and are therefore very flexible. They use basic standard protocols, such as autonegotiation, autocrossing, and flow control, and can automatically adapt to different transmission speeds or connector wiring.

Ethernet switches "Basic Line" 10/100 BaseT(X) (RJ45 connector), 100BaseFX (SC multimode). Redundant dual 12/24/48 V dc, 18 to 30 V ac inputs. Robust hardware design, well suited for hazardous areas (Class I Div. 2 /ATEX) and marine environments (DNV/GL). Aluminum housing according to IP 30.

Switches are available with different connection options:

• 5 x RJ45
• 4 x RJ45, 1 x SC multimode
• 5 x RJ45
• 6 x RJ45, 2 x SC multimode.
