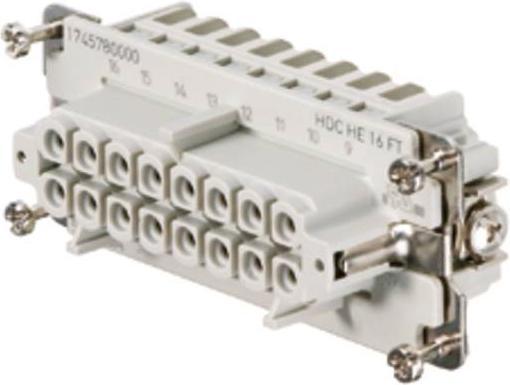

Weidmüller Contact insert socket 16p spring return 16A 1745780000

Weidmüller socket insert HDC HE 16 FT

Manufacturer: Weidmüller
Designation: Socket insert
Type: HDC HE 16 FT
Contact insert without contacts: No
Contact design: Socket
Number of poles: 16
Material of the connector insert: Thermoplastic
Rated current In: 16 A
Operating temperature: -40 to 125 °C
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Pollution degree: 3
Electrical connection type: Spring-cage connection
With wire protection: No
Connectable fine-stranded conductor cross-section without ferrule: 0.5 to 2.5 mm²
Connectable fine-stranded conductor cross-section with wire end ferrule: 0.5 to 2.5 mm²
Connectable conductor cross-section solid: 0.5 to 2.5 mm²
Connectable conductor cross-section stranded: 0.25 to 2.5 mm²
Material of contact coating: Silver
Material of contact insert: Thermoplastic
Material of contact: Other copper alloys
Flammability class of insulating material according to UL 94: V0
With protective conductor: Yes
Width: 34 mm
Height: 33 mm
Depth: 84.5 mm

Weidmüller socket insert HDC HE 16 FT: Further details Insert for industrial connectors, consisting of contact element and insulating body. EAN: 4008190985509.
