Weidmüller Contact insert Eth 8p crimp 1.5A 125V 1950280000
Delivered between Thu, 31.7. and Tue, 19.8.
Product details

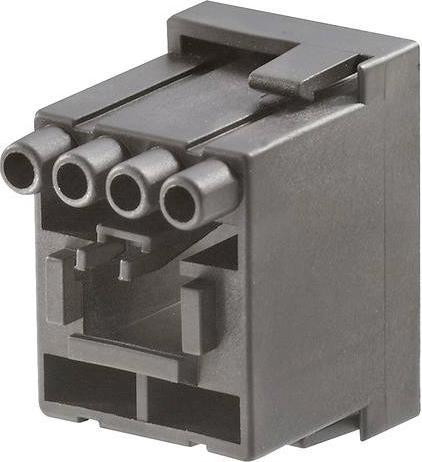

Weidmüller plug-in connector HDC CM RJ45 M
Manufacturer: Weidmüller
Designation: Plug-in connector
Concept Module Type: HDC CM RJ45 M
Contact design: Pin
Number: 8
Rated current: 1.5 A
Operating temperature: -20 to 85 °C
Rated voltage: 125 V
Rated impulse voltage: 1.8 kV
Electrical connection type: Crimp connection
Connectable fine-stranded conductor cross-section without ferrule: 0.14 to 2.5 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.14 to 2.5 mm²
Connectable solid conductor cross-section: 0.14 to 2.5 mm²
Connectable conductor cross-section stranded: 0.14 to 2.5 mm²
Contact coating material: Gold
Further details: RJ45 insert for industrial connectors.
EAN: 4032248628872.
Plug type | RJ45 |
Cable + connector type | Plug connectors |
Item number | 33657149 |
Manufacturer | Weidmüller |
Category | Cables + Plugs |
Manufacturer no. | 1950280000 |
Release date | 17.5.2023 |
Colour | Black |
Material group | Metal |
Material | Gold |
Cable + connector type | Plug connectors |
Plug type | RJ45 |
Max. temperature | 85 °C |
Min. temperature | -20 °C |
Manufacturer Type | HDC CM RJ45 M |
Number of cores | 8 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
