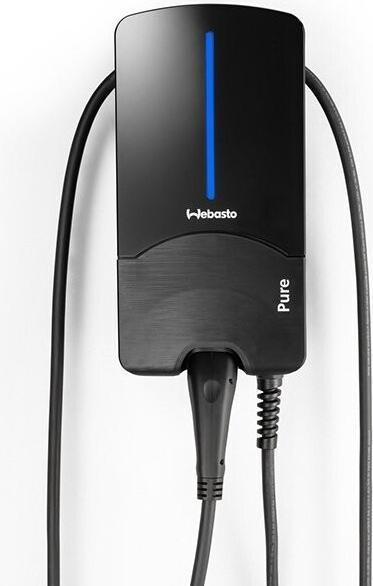

Webasto Pure II 22KW Type 2 7.0m cable

Webasto Pure II | Charging Station | 22 kW | 7.0 m Type 2 Cable

The Webasto Pure charging station (Version II) is the ideal companion in the field of electromobility, whether at a company parking space or at home. Pure II ensures comfortable, fast, and safe charging of your electric car. The stationary charging station can be mounted on the wall or with a stand.

Features:

• Charging power: continuously configurable up to 22 kW
• Integrated Type 2 charging cable
• Cable length: 7.0 meters
• Cable holder and plug retention
• Access control with universal key holder
• Operating status display
• Easy to use: Plug-and-Play
• Simple installation
• Integrated DC residual current protection
• According to protection class I
• According to protection rating IP54
• Overvoltage category: III according to EN 60664
• Input / output voltage: 230 / 400 V AC
• Rated current: 8, 10, 13, 16, 20, 25, 32 Amperes
• Network forms:
• Split phase (L1+L2, without N)
• Single-phase, two-phase, or three-phase
• TT / TN (single and three-phase) / IT (single-phase)
• Wall or stand mounting
• Dimensions: 22.5 x 44.7 x 11.6 cm
• Weight: 6.8 kg

Please note:
All installation and mounting work must be carried out by a qualified electrical specialist, such as operational engineers, masters, skilled workers, or installers. The AC grid connection and the charging planning for the electric vehicle charging station must be checked and approved by the authorities in accordance with applicable regional or national regulations and standards for electric vehicles.
