Data growth with a smaller footprint
The explosive data growth driven by AI/ML, 5G networks, IoT, connected vehicles, and more is also leading to the expansion of data centers. Innovations in hard drives enable the capture, storage, analysis, and protection of many of these data. Higher-capacity hard drives offer greater data density, allowing for expanded and more efficient data centers.
22 TB for data center expansion

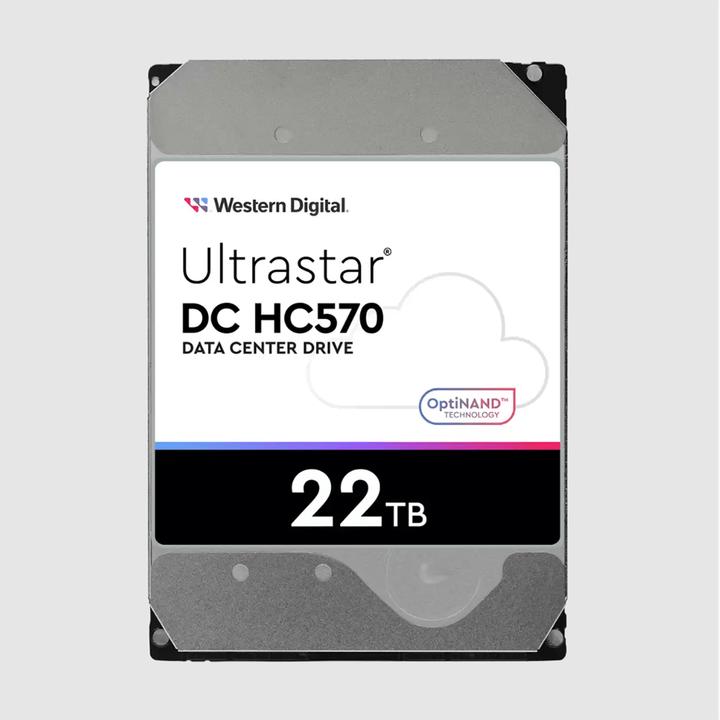

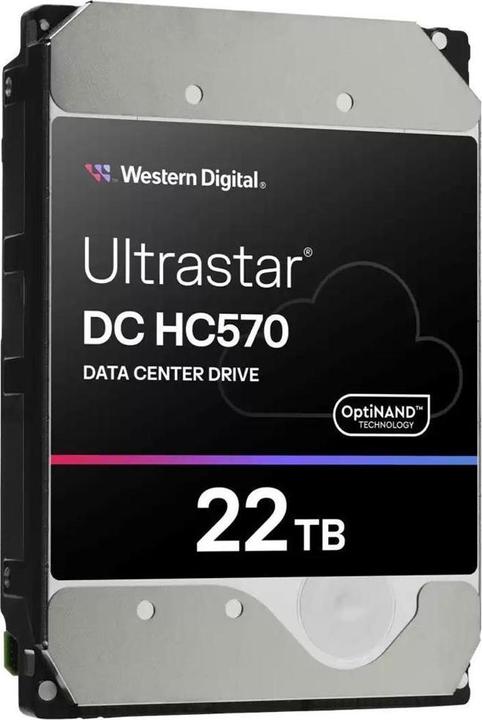

The Ultrastar DC HC570 22TB hard drive for data centers with OptiNAND technology represents the next breakthrough in data density. This 22TB hard drive enables an incredible 22.44 PB of raw storage in a typical rack. This higher volume density allows data centers to maximize their storage space, especially in environments with limited space and power consumption.
The Ultrastar DC HC570 combines several industry-leading technologies in a CMR drive with 10 platters, providing the performance, quality, and reliability that customers need in data centers.
Low power consumption for lower operating costs
Ultrastar hard drives are designed for optimal performance across a wide range of workloads. The DC HC570 features low power consumption during sequential read/write workloads and various random read/write workloads.
Benefits of OptiNAND technology
The Ultrastar DC HC570 is the 2nd generation platform with OptiNAND technology.
Scope of application | Enterprise |
Interface | SATA |
Interface version | SATA III |
Cache | 512 MB |
Sustained Speed HDD | 291 MB/s |
Max. Speed | 7200 RPM |
Storage Technology | CMR |
Documents | Technical data sheet.pdf |
Item number | 23346912 |
Manufacturer | WD |
Category | Hard drives |
Manufacturer no. | 0F48155 |
Release date | 18.7.2022 |
External links |
Scope of application | Enterprise |
Interface | SATA |
Interface version | SATA III |
Form factor | 3.5" |
Storage capacity | 22 TB |
Cache | 512 MB |
Sustained Speed HDD | 291 MB/s |
Max. Speed | 7200 RPM |
Storage Technology | CMR |
Max. Workload Rate | 550 TB/J |
MTBF | 2500000 h |
Maximum operating temperature | 60 °C |
Power consumption (standby) | 4.80 W |
Power consumption | 9.30 W |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 223.74 kg |
Climate contribution | CHF 5.32 |
Length | 14.70 cm |
Width | 10.16 cm |
Height | 2.61 cm |
Weight | 670 g |
Length | 20.80 cm |
Width | 13.30 cm |
Height | 5.90 cm |
Weight | 688 g |
How often does a product of this brand in the «Hard drives» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Hard drives» category returned?
Source: Digitec Galaxus
The Ultrastar DC HC570 comes from Western Digital's server series. The drive is allowed to read or write 550 TByte per year within the scope of the warranty, ten times the capacity of a simple desktop model. The maximum speed of 290 MByte/s is not reached at the edge, but at 10 per cent of the capacity - in practice, this is not noticeable...
