WaveShare RS232 / RS485 / CAN board and housing for Raspberry Pi 5 / 4B

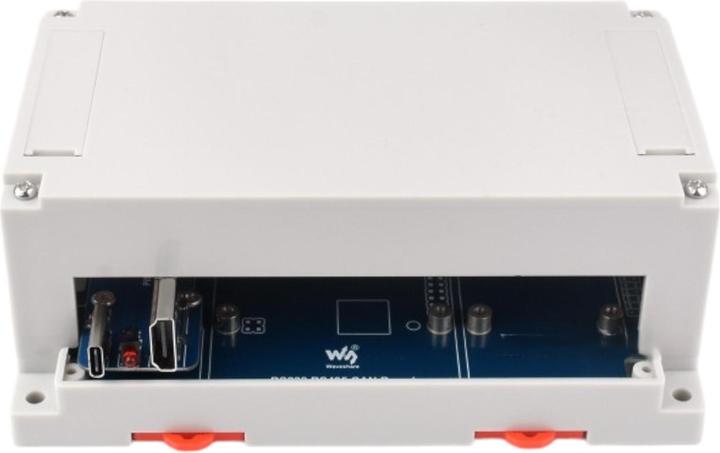

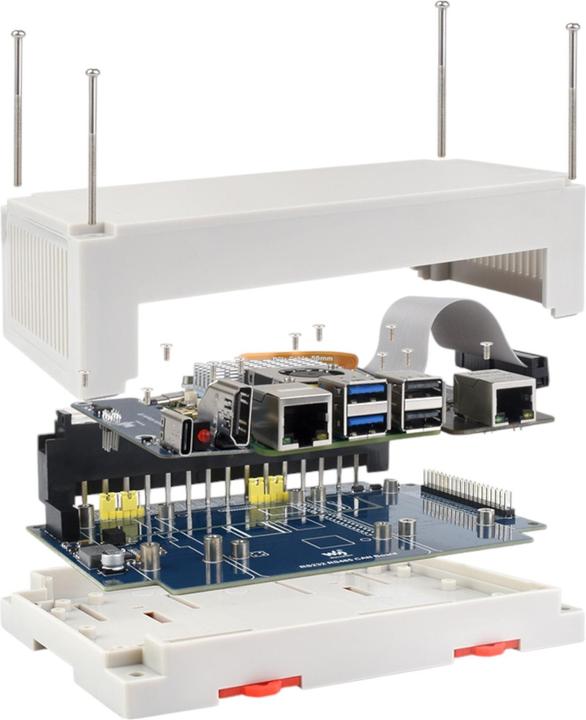

The RS232 / RS485 / CAN board and enclosure for Raspberry Pi 5 / 4B from WaveShare is a powerful expansion solution for industrial applications. It has been specifically designed to enhance the functionality of the Raspberry Pi through a variety of interfaces. With two isolated RS485 channels, one RS232 channel, as well as one CAN and one CAN FD channel, this board enables reliable communication in demanding environments. The robust plastic enclosure not only provides protection but also offers flexibility in mounting, whether on a wall or on a DIN rail. The electrical isolation of each interface protects against overvoltage and static discharges, enhancing the safety and longevity of the system. Power can be supplied over a wide voltage range of 7-36V or via the 5V Type-C connector, allowing for easy integration into existing systems. Additionally, the enclosure provides ample space for additional modules and adapters, further increasing the system's adaptability.

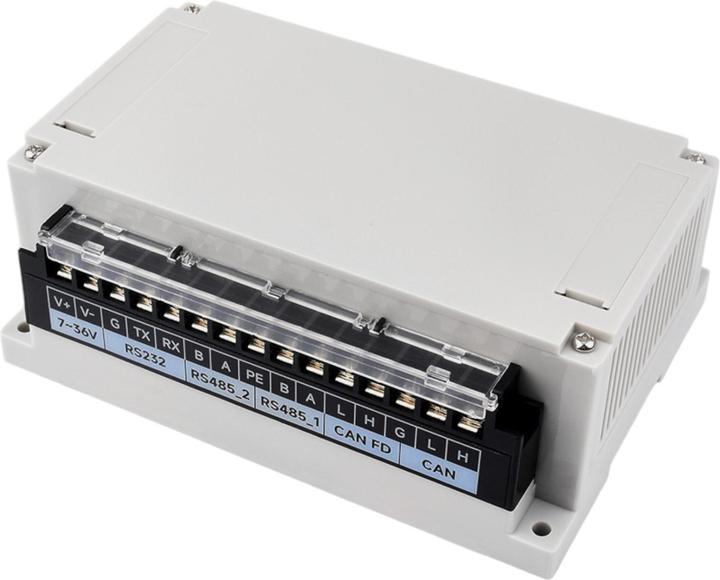

• Two isolated RS485 interfaces for stable communication in industrial environments
• One isolated RS232 port for reliable serial communication
• Integrated CAN and CAN FD channels for extended communication options

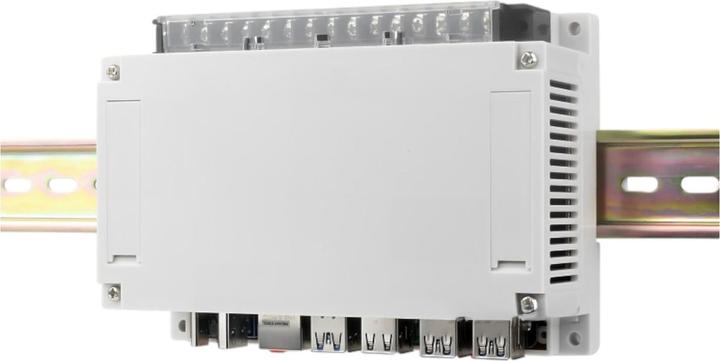

• Robust enclosure for wall and DIN rail mounting, ideal for industrial applications
• Flexible power supply via 7-36V terminal or 5V Type-C connector.
