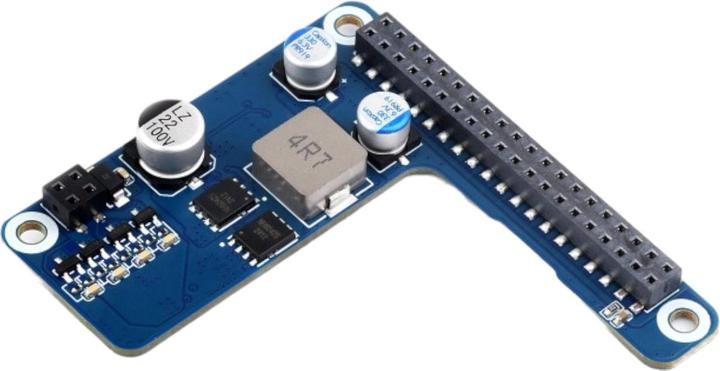

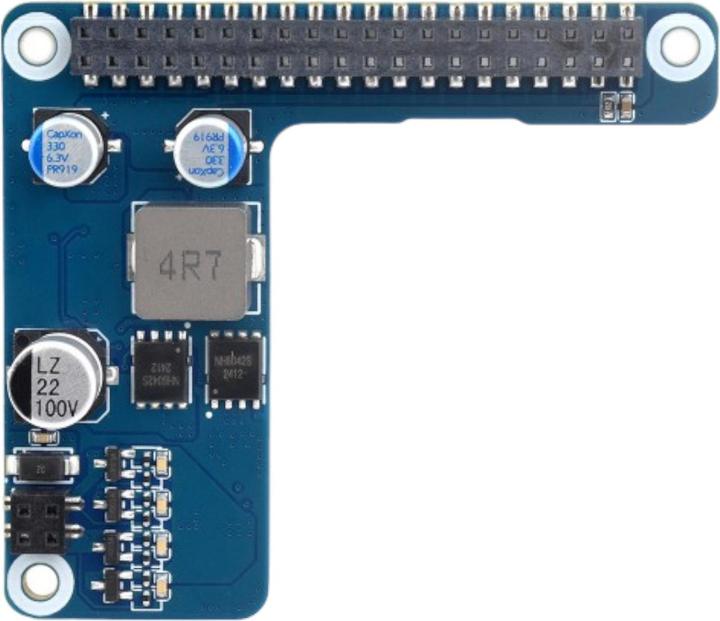

WaveShare PoE HAT (G) für Raspberry Pi 5

With the PoE HAT (G) for the Raspberry Pi 5, you can supply your Raspberry Pi with both power and a network connection via a single Ethernet cable. The HAT supports the IEEE 802.3af/at network standard and delivers stable power with an output of 5V and 5A. Thanks to its compact design, it can be easily integrated into the official Raspberry Pi 5 housing. It utilises a non-isolated switching power supply for an efficient power supply and is equipped with a standard 40-PIN GPIO header. This PoE HAT is the perfect choice for projects where a reliable and space-saving power supply is required. Ideal for use in network-based applications, it allows you to operate your Raspberry Pi flexibly in different environments.

Features:

• The PoE HAT supports the IEEE 802.3af/at network standard and offers high compatibility.
• It provides an output voltage of 5V and a current of up to 5A, which enables a stable and efficient power supply.

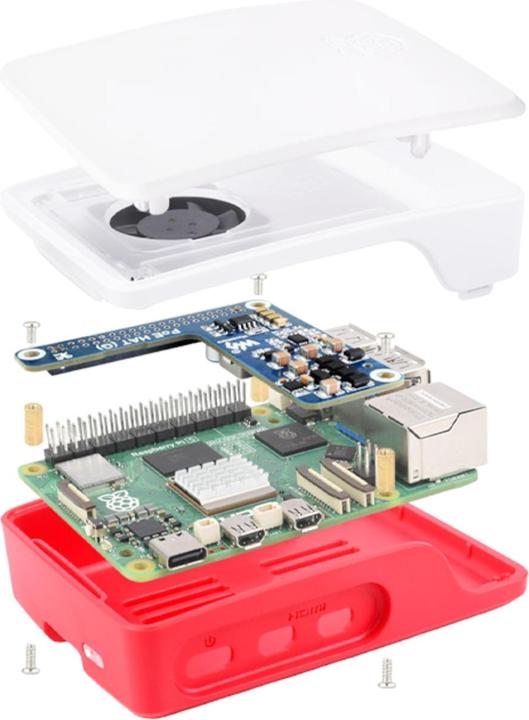

• Thanks to its compact design, the HAT can be easily integrated into the official Raspberry Pi 5 housing.
• The HAT is equipped with a non-isolated switching power supply that ensures reliable and consistent power output.

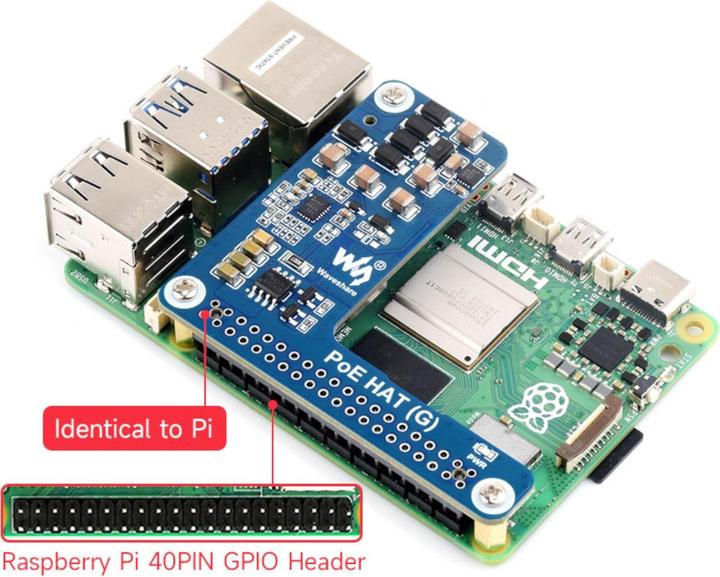

• It has a standard 40-PIN GPIO header that allows easy installation and connection to the Raspberry Pi 5.

Application examples:

• Powering a Raspberry Pi 5 in a network server project directly via an Ethernet cable.
• Use in a smart home automation system in which the Raspberry Pi 5 is operated centrally via PoE.
• Use in a monitoring project in which several Raspberry Pi 5 devices are supplied with power and networked via PoE.

Technical data:

• PoE power input: 38V to 57V DC
• Power output: 5V 5A maximum
• Network standard: IEEE 802.3af/at POE.
