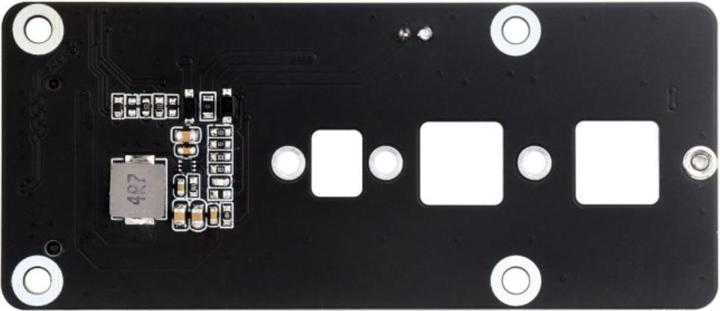

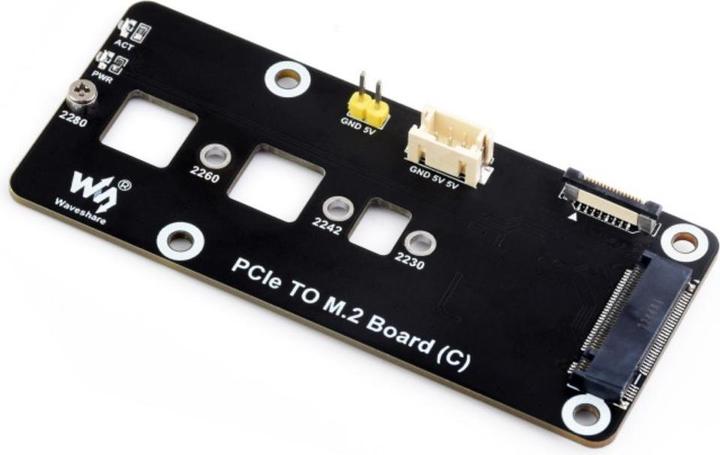

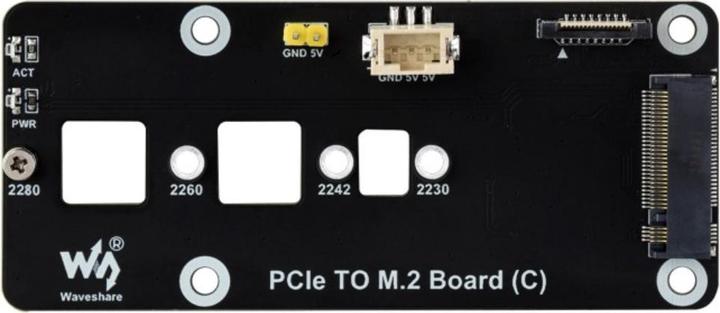

WaveShare PCIe zu M.2 SSD Adapter (C) für Raspberry Pi 5

Discover the PCIe to M.2 SSD adapter for your Raspberry Pi 5. With this innovative solution, you can connect an NVMe M.2 SSD to your Raspberry Pi, significantly enhancing storage performance. The adapter supports sizes 2230, 2242, 2260, and 2280 and is compatible with Gen2 and Gen3 modes, allowing for fast read and write speeds. Thanks to the transparent acrylic mounting plate and side-mount solution, your Raspberry Pi remains compact and organized. Additionally, you can boot your system directly from the SSD, improving the efficiency and speed of your project.

Recommended Accessories:
M.2 SSD size 2230, 2242, 2260, or 2280

Features:

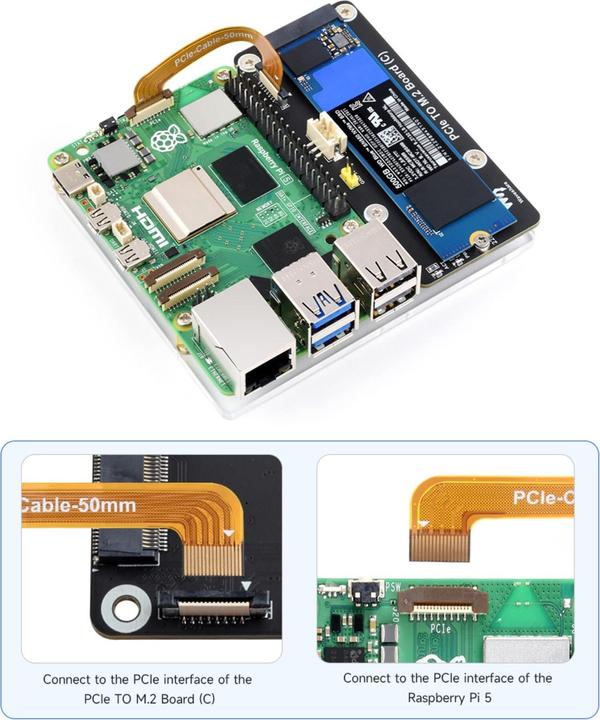

• Connects an NVMe M.2 SSD to your Raspberry Pi 5
• Supports SSD sizes from 2230 to 2280
• Compatible with Gen2 and Gen3 modes for fast data transfer
• Allows booting from the SSD for enhanced system performance
• Transparent acrylic mounting plate and space-saving side mount
• Dual LED indicators for easy monitoring of operating status
• Various power supply methods: PCIe cable or 3PIN cable

Application Examples:

• Expanding the storage of your Raspberry Pi 5 for data-intensive applications
• Improving system performance and boot times by using an NVMe M.2 SSD
• Utilizing in compact projects thanks to the space-saving side mount
• Developing a powerful media server
• Using in professional projects with high storage requirements

Technical Specifications:

• Manufacturer: Waveshare
• Manufacturer SKU: 26785
• Interface: PCIe to M.2
• Supported SSD sizes: 2230, 2242, 2260, 2280
• Mode: Gen2 and Gen3
• Boot support: Yes
• LED indicators: Dual
• Dimensions: 87 x 37.5 x 11.5 mm
• Weight: 72 g

Package Contents:

• 1x PCIe to M.2 SSD adapter for Raspberry Pi 5
• 1x transparent acrylic mounting plate
• 1x PH2.0 3PIN cable (approx. 5 cm)
• 1x PCIe cable (50 mm)
• 1x standoff set.
