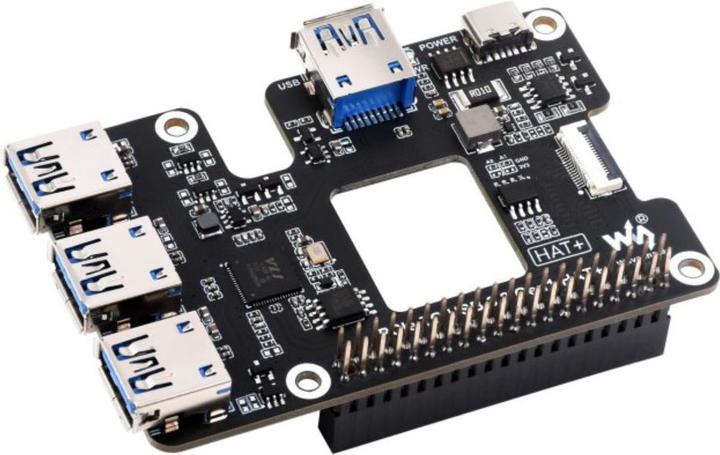

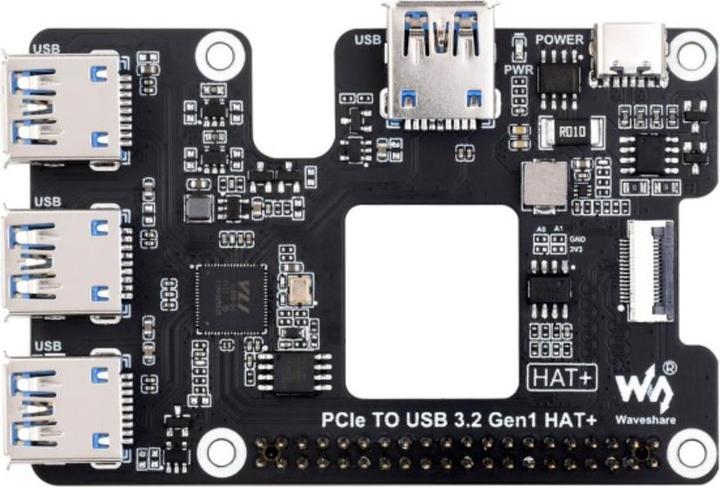

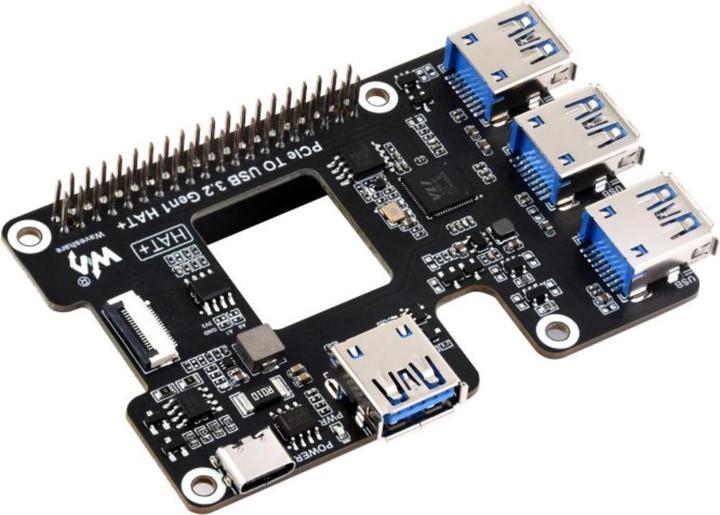

WaveShare PCIe to USB 3.2 HAT+ for Raspberry Pi 5

Expand your Raspberry Pi 5 with the PCIe to USB 3.2 HAT+. This extension offers you four additional USB 3.2 Gen1 ports for maximum data transfer rates. Thanks to the simple plug-and-play function, you don't need to install any drivers. The HAT+ is connected to your Raspberry Pi via a 16-pin interface and is ready for immediate use. With the integrated power monitoring chip, you can monitor the power consumption and control the USB ports via software. Additional ventilation slots ensure optimum cooling and therefore stable performance. This HAT+ is perfect for expanding the USB capacity of your Raspberry Pi and using multiple USB devices simultaneously.

Features:
Plug-and-play: No driver installation required.
Extended USB capacity: Four USB 3.2 Gen1 ports.
Power monitoring: Monitoring and control of the USB ports via software.

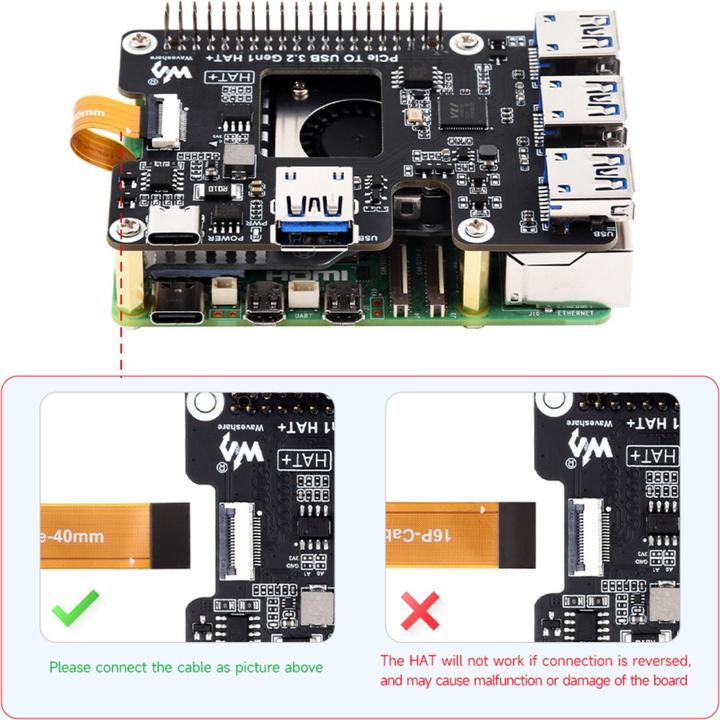

Easy installation: Connection via 16-pin PCIe interface.
Optimum cooling: Ventilation slots for cooling fans.

Application examples:
Connect external hard drives for additional storage capacity.
Use several USB devices simultaneously, such as keyboard, mouse and printer.
Connect USB cameras for your surveillance project.
Extension for USB-based IoT devices.
Perfect for multimedia applications with multiple USB devices.

Documentation:
Waveshare Wiki

Technical data:
Manufacturer: Waveshare
Manufacturer SKU: 26847
Ports: 4x USB 3.2 Gen1
Chip: VL805 PCIe to USB 3.2 Gen1 HUB
Power Monitoring: INA219 Chip
Power supply: Internal or external via Type-C 5V DC
Dimension: 85 x 49 x 23mm
Weight: 57.8g

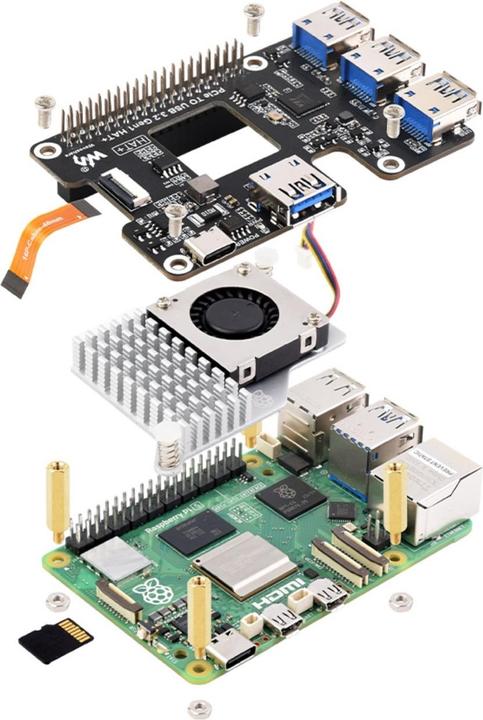

Scope of delivery:
1x PCIe to USB 3.2 HAT+ for Raspberry Pi 5
1x spacer set
1x 40mm 16P cable.
