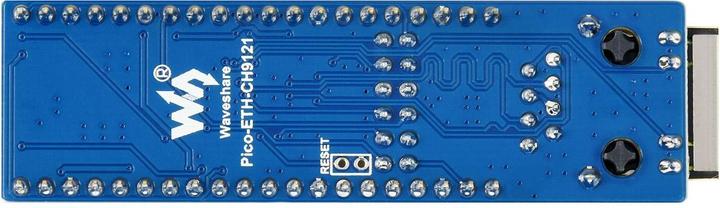

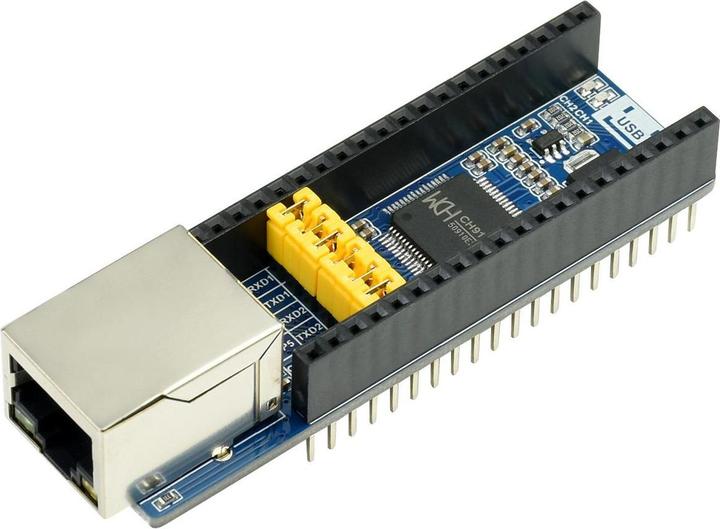

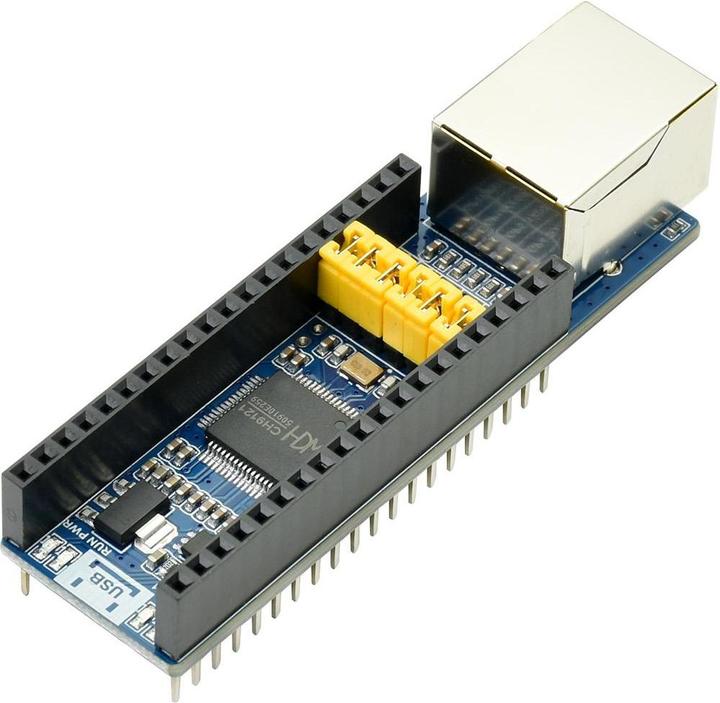

WaveShare Ethernet to UART Converter for Raspberry Pi Pico
5 pieces in stock at third-party supplier
Product details
This is an Ethernet to UART converter from Waveshare. The pre-soldered pin headers fit a standard Raspberry Pi Pico board, enabling your Pico project to communicate over the network via UART. Supported speeds are either 10 or 100 Mbit/s.
Features:
Standard Raspberry Pi Pico header
Onboard jumper for pin configurations
Integrated MAC and PHY layers
Bi-directional data transfer from Ethernet to UART
10/100M full/half-duplex 802.3 Ethernet interface
Auto MDI/MDIX detection
Supports DHCP for automatically obtained IP and DNS domain access
TCP and UDP modes
Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 20410
Voltage: 3.3V/5V
Current: 140mA
Operating modes: TCP/UDP
Baud Rate: 300bps – 921.6Kbps
Operating temperature: -40°C to 85°C
Dimensions: 75 x 21 x 15mm
Weight: 20g
Included in the package:
1x Ethernet to UART converter for Raspberry Pi Pico.
Item number | 25034260 |
Manufacturer | WaveShare |
Category | Development board accessories |
Manufacturer no. | Pico-ETH-CH9121 |
Release date | 5.4.2023 |
Compatible hardware | Raspberry Pi |
Development board Accessory type | Development board Power supply unit |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x Ethernet to UART converter for Raspberry Pi Pico |
Length | 7.50 cm |
Width | 2.10 cm |
Height | 1.50 cm |
Weight | 20 g |
