Walther Werke WAL 6920110 Socket outlet combination fused 1xCEE 5/16,2x
Delivered between Sat, 16.8. and Tue, 9.9.
Product details

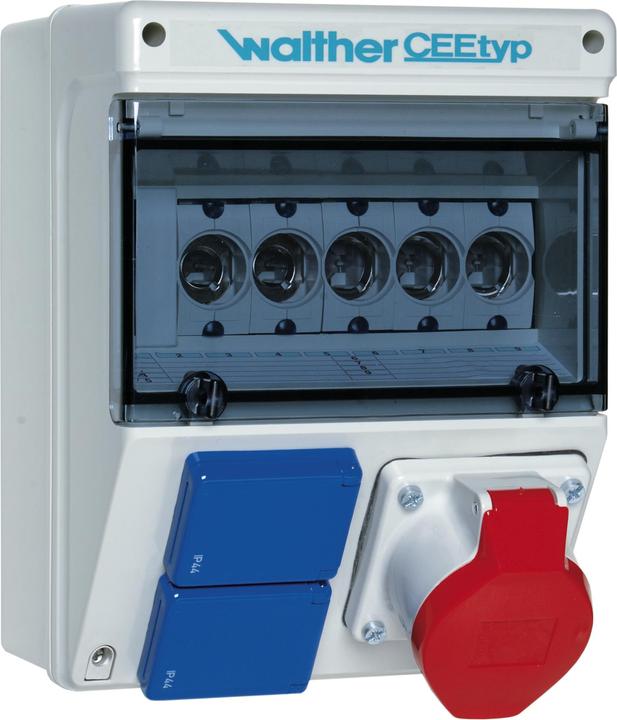

The WALTHER 6920110 socket combination is a high-quality solution for safe power supply in various applications. It complies with the standards of IEC 61439-Part 1 and 3 and features a robust construction made of silicone- and halogen-free PC/ABS. The housing is light gray, similar to RAL 7035, and has a snap-on clear cover that provides additional protection. With an IP44 protection rating, the socket combination is suitable for use in demanding environments. The integrated protection includes a CEE mounting socket as well as two protective contact sockets, ensuring reliable power distribution. The combination is pre-wired and offers high flexibility with multiple pre-formed entries for cable access.
- Protection class II and flammability class V0 for increased safety
- IP44 protection rating for use in demanding environments
- Pre-wired and tested according to DIN EN 61439
- Integrated Neozed base for easy protection
- Robust housing made of silicone- and halogen-free material.
Item number | 32128029 |
Manufacturer | Walther Werke |
Category | Electronics supplies + Casing |
Manufacturer no. | 6920110 |
Release date | 16.11.2022 |
Colour | Grey |
Manufacturer Type | 6920110 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 connection up to 25qmm 3P, 1 connection up to 25qmm 5P, 2 socket outlets with earthing contact 16A 3P 230V, Colour: similar to RAL 7035 -light grey, Connection: 2 knockouts top and bottom M25/M32/M40, each with 1 Neozed base 1P D01, Housing (692) made of silicone- and halogen-free PC/ABS, WALTHER plastic socket outlet combination to IEC 61439 parts 1 and 3, with transparent lid that snaps into place at the top |
Length | 237 mm |
Width | 183 mm |
Height | 152 mm |
Specifications may include unverified machine translations.
