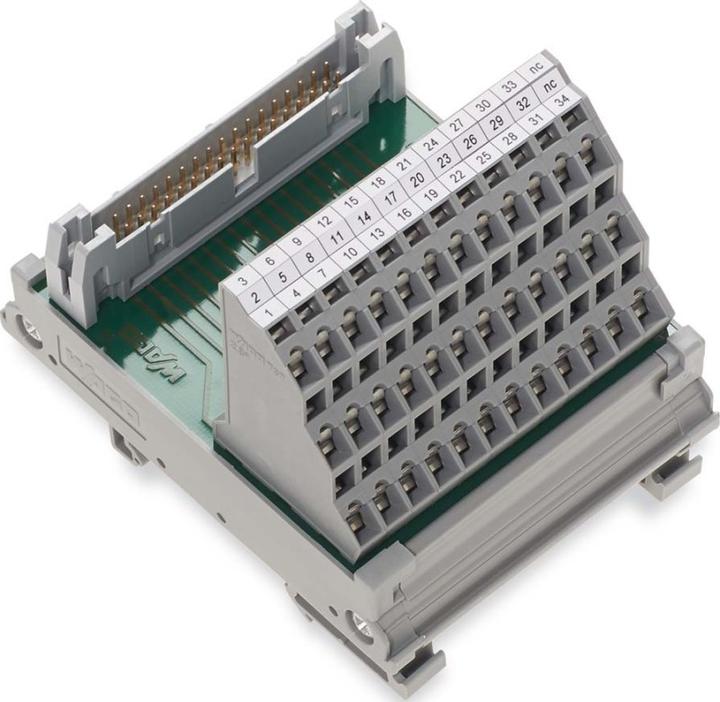

WAGO GmbH & Co. KG interface module 289-618
Manufacturer: WAGO GmbH & Co. KG
Designation: Transfer module
Type: 289-618
Electrical connection version, field side: Spring-cage connection
Electrical connection version, control side: Other
Number of poles: 50
Rated voltage: 125 V
Rated current: 1 A
Pollution degree: 2
Depth: 85 mm
Width: 88 mm
Height: 62 mm
Mounting type: Top-hat rail TH35
Transfer module 289-618: more details
Transfer module connector according to DIN 41651, 50-pole
Three-pin PCB terminals in mounting base, 2.50 mm²
EAN: 4045454353629.
Cable + connector type | Plug connectors |
Item number | 36770440 |
Manufacturer | Wago |
Category | Cables + Plugs |
Manufacturer no. | 289-618 |
Release date | 28.6.2023 |
Cable + connector type | Plug connectors |
Max. temperature | 70 °C |
Min. temperature | -20 °C |
mounting type | DIN top-hat rail |
Manufacturer Type | 289-618 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Length | 8.50 cm |
Width | 8.80 cm |
Height | 6.20 cm |
