Wago Single clamp

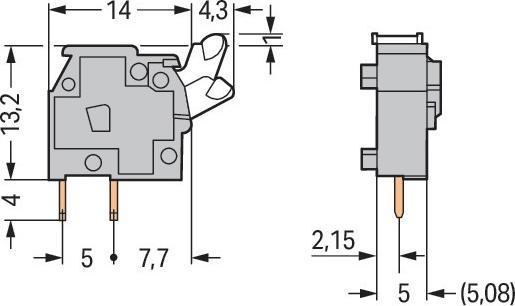

WAGO GmbH & Co. KG Single terminal block 255-743 Manufacturer :WAGO GmbH & Co. KG Designation :Single terminal block 0.08-2.5qmm lgr Type :255-743 Height :14.2 mm Number of electrical connections :1 Number of levels :1 Connection pitch :5 mm Angle PCB/conductor connection :90° (vertical upwards) Rated current In :24 A Rated voltage :320 V Rated impulse voltage :4 kV Overvoltage category :III Pollution degree :2 Connection type conductor :Spring-cage connection Connectable conductor cross-section solid :0.08..2.5 mm² Connectable conductor cross-section finely stranded with ferrule :0.25..1.5 mm² Connectable conductor cross-section finely stranded without ferrule :0.08..2.5 mm² Connectable conductor cross-section multi-stranded :0.08..2.5 mm² Connection type PCB :Solder connection Material of connection surface :Tin Length of pin :4 mm Material of insulating body :Thermoplastic Housing colour :Grey Flammability class of insulating material according to UL 94 :V0 Operating temperature :-60...105 °C Type of PCB fastening :Connection contact Type of fastening :solder Type of banding :without WAGO GmbH & Co. KG Single terminal block 255-743: more details Bayable PCB terminal block Push-pull 2.5 mm² Spacing 5/5.08 mm 1-pole CAGE CLAMP® Bridging option 2.50 mm² light grey , EAN: 4044918662932.
