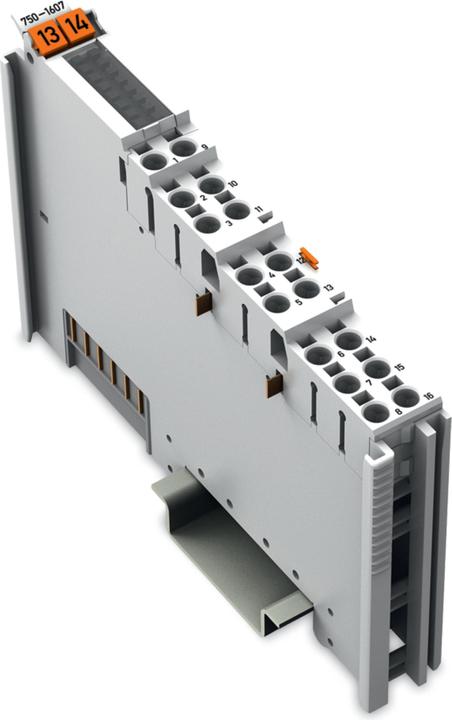

Wago Potential multiplying cl

Potential multiplication 8-fold 24 V / 8-fold 0 V. The potential multiplication terminal is designed to provide the 24V and 0V potential for the inputs and outputs in combination with the 8-channel input/output terminal 750-1506 (also suitable for 8-channel bus terminals with single-wire connection).

The use of additional terminal blocks is therefore unnecessary.

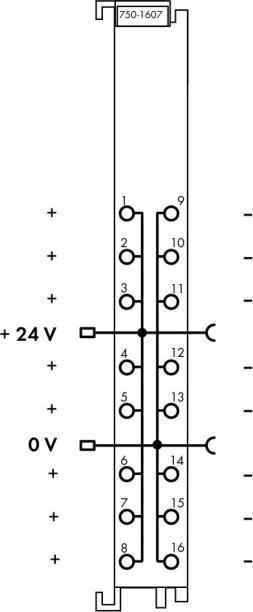

The potential multiplication terminal receives the 24V supply voltage and the 0V potential through the internal power contacts of a preceding bus terminal. By snapping the bus terminal into place, an automatic connection of the potentials to the subsequent terminals occurs via the power contacts. The 24V and 0V supply is provided at eight Push-in CAGE CLAMP connections for the field level.

A tool with a 2.5mm blade is required to open the Push-in CAGE CLAMP connections.
