Wago Fieldbus connector PROFIBUS D-Sub

Ratings
BrandMore from Wago
Delivered between Wed, 18.6. and Fri, 27.6.
8 items in stock at supplier

Product details

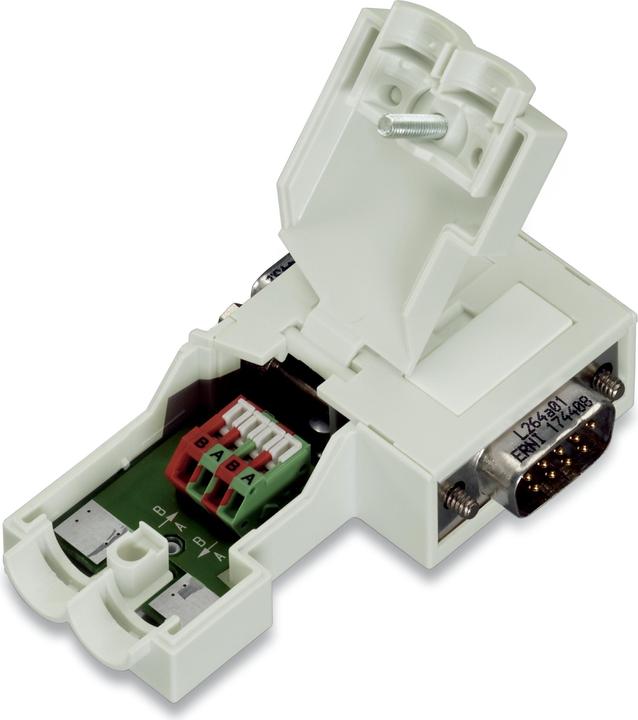

Profibus fieldbus connector with D-sub connector, 9-pole. The fieldbus connector is used to connect a Profibus participant to the Profibus bus line. The fieldbus connector is characterized by the following features: compact design, making it particularly suitable for connection to an S7 PLC. No parts that can be lost. Programming interface. Two horizontal cable entries for input and output. Fast and maintenance-free CAGE CLAMP connection with lockable terminals via an actuation slider. Externally operable switch for turning the termination on or off.

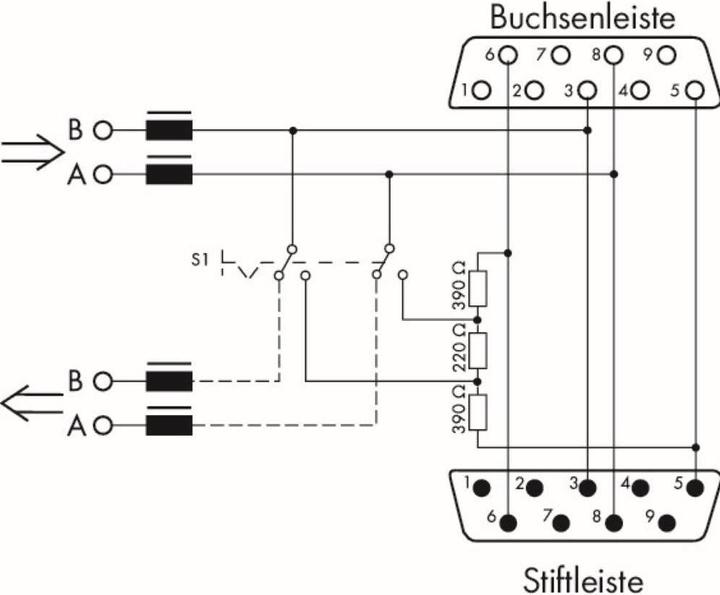

For the first and last bus participants, the termination switch must be set to ON (termination resistor activated, outgoing bus line disconnected). For subsequent bus participants, it should be set to OFF (termination resistor deactivated).

Key specifications

Plug type
DC connector
Cable + connector type
Male
Item number
9724586

General information

Manufacturer
Wago
Category
Cables + Plugs
Manufacturer no.
750-972
Release date
24.9.2018
Sales rank in Category Cables + Plugs
60 of 30268
External links
Manufacturer's site (de)

Colour

Colour
Grey

Cable + Connector Features

Cable + connector type
Male
Plug type
DC connector
Max. temperature
85 °C
Min. temperature
-25 °C
Manufacturer Type
750-972
Connectors Design
Plug, angled
Number of cores
9 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Fieldbus connector 750-972

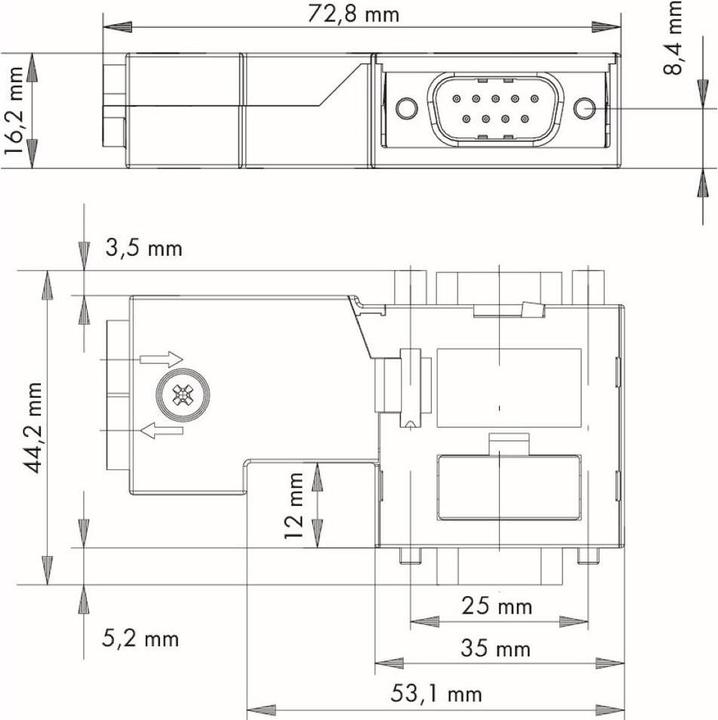

Product dimensions

Length
1.62 cm
Width
4.36 cm
Height
7.28 cm
Weight
30 g
