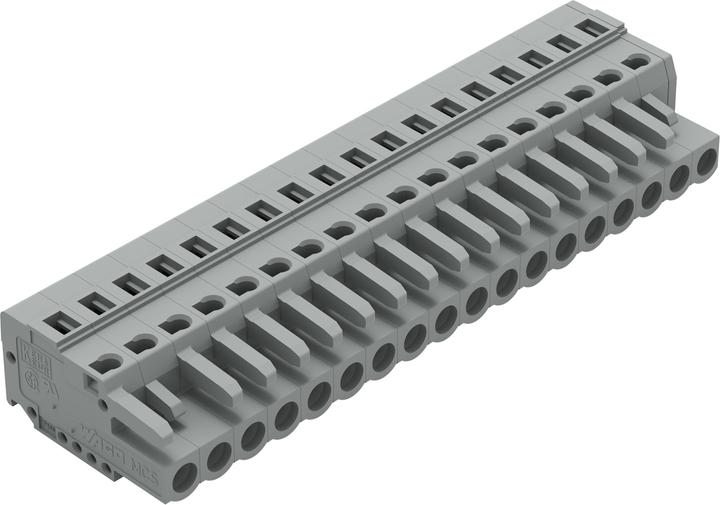

Wago Female connector Grey 231-118/026-000 Contents: 25 pcs (231-118/026-000)

Ratings
Delivered between Wed, 10.6. and Wed, 17.6.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Product details

WAGO GmbH & Co. KG female connector 231-118/026-000

Manufacturer: WAGO GmbH & Co. KG
Designation: Female connector, 18-pole, 5mm
Type: 231-118/026-000
Connection type: PCB to cable
Contact design: Socket
Number of poles: 18
Number of rows of plug contacts: 1
Contact pitch: 5 mm
Terminal pitch: 5 mm
Angle of contact/conductor connection: 180° (horizontal)
Rated current: 16 A
Rated voltage: 320 V
Rated impulse voltage: 4 kV
Overvoltage category: III
Degree of pollution: 2
Connectable conductor cross-section, flexible without ferrule: 0.08...2.5 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.25...1.5 mm²
Connectable solid conductor cross-section: 0.08...2.5 mm²
Connectable conductor cross-section stranded: 0.08...2.5 mm²
Electrical connection type: spring-loaded connection
Connectable cable type: round cable
Material of contact coating: tin
Material of contact: other copper alloys
Material of insulating body: thermoplastic
Material of housing: plastic
Coating of housing: uncoated
Housing colour: grey
Flammability class of insulating material according to UL 94: V0
With protective conductor: no
Operating temperature: -60...85 °C
Protection class (IP), mounted: IP20

WAGO GmbH & Co. KG female connector 231-118/026-000: further details
1-conductor female connector CAGE CLAMP® 2.5 mm²
Spacing: 5 mm
18-pole
2.50 mm² grey
EAN: 4044918342469.

Key specifications

Cable + connector type
Plug connectors

General information

Item number
34026966
Manufacturer
Wago
Category
Cables + Plugs
Manufacturer No.
231-118/026-000
Release date
17.5.2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Polyphtalamide (PPA GF)

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
85 °C
Connectors Design
Socket, straight
Number of cores
18x

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 2.–

Scope of delivery

Items per sales unit
25 pcs.

Product dimensions

Length
1.43 cm
Width
9.15 cm
Height
2.65 cm
