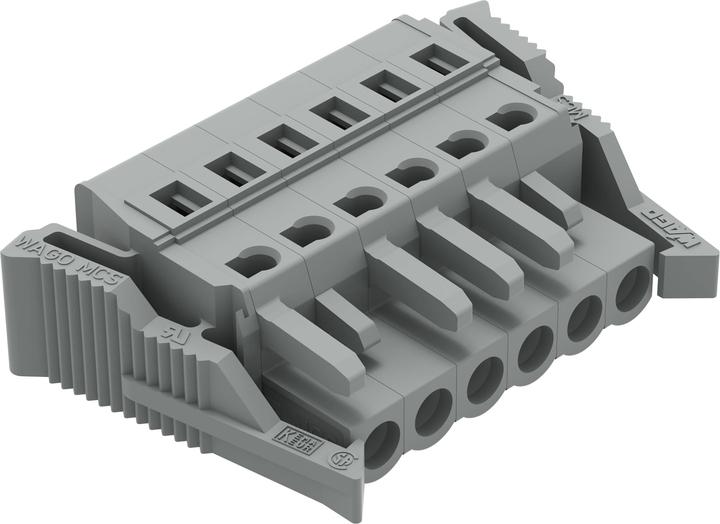

Wago Female connector

WAGO GmbH & Co. KG female connector 231-106/037-000. Manufacturer: WAGO GmbH & Co. KG. Designation: Female connector. Type: 231-106/037-000. Connection type: PCB to cable. Contact design: Socket. Number of poles: 6. Number of rows of plug contacts: 1. Contact pitch: 5 mm. Terminal pitch: 5 mm. Angle contact/conductor connection: 180° (horizontal). Rated current: 16 A. Rated voltage: 320 V. Rated impulse voltage: 4 kV. Overvoltage category: III. Pollution degree: 2. Connectable conductor cross-section, fine-stranded without ferrule: 0.08 to 2.5 mm². Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm². Connectable solid conductor cross-section: 0.08 to 2.5 mm². Connectable conductor cross-section stranded: 0.08 to 2.5 mm². Electrical connection type: spring-loaded connection. Connectable cable type: round cable. Material of contact coating: tin. Material of contact: other copper alloys. Material of insulating body: thermoplastic. Material of housing: plastic. Coating of housing: uncoated. Housing colour: grey. Flammability class of insulating material according to UL 94: V0. With protective conductor: no. Operating temperature: -60 to 85 °C. Protection class (IP), mounted: IP20. Further details: 1-conductor female connector CAGE CLAMP® 2.5 mm². Spacing: 5 mm. 6-pole lateral locking latches. 2.50 mm² grey. EAN: 4044918339537.
