Wago Female connector

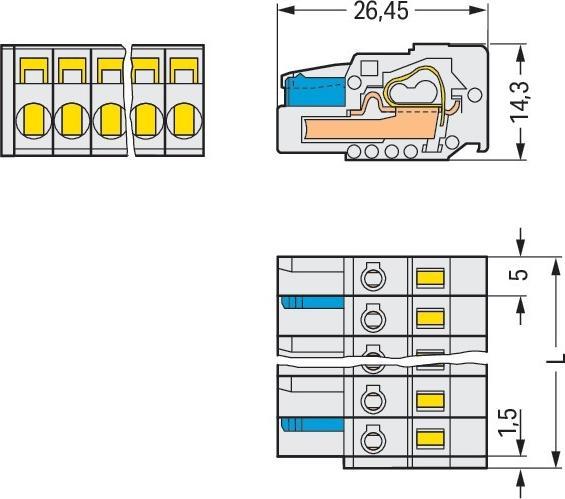

WAGO GmbH & Co. KG Female connector 721-103/026-000 Manufacturer :WAGO GmbH & Co. KG Designation :Female connector 3-pin Type :721-103/026-000 Connection type :PCB to cable Contact design :Socket Number of poles :3 Number of plug contact rows :1 Contact spacing :5 mm Terminal spacing :5 mm Angle contact/conductor connection :180° (horizontal) Rated current In :16 A Rated voltage :320 V Rated impulse voltage :4 kV Overvoltage category :III Pollution degree :2 Connectable conductor cross-section fine stranded without ferrule :0.08..2.5 mm² Connectable conductor cross-section finely stranded with ferrule :0.25..1.5 mm² Connectable conductor cross-section solid :0.08..2.5 mm² Connectable conductor cross-section multi-stranded :0.08..2.5 mm² Type of electrical connection :Spring-cage connection Connectable cable type :Round cable Material of contact coating :Tin Material of contact :Other copper alloys Material of insulator :Thermoplastic Housing material :Plastic Coating housing :Uncoated Housing colour :Grey Flammability class of the insulating material according to UL 94 :V0 With protective conductor :No Operating temperature :-60..85 °C Protection class (IP), mounted :IP20 WAGO GmbH & Co. KG Female connector 721-103/026-000: further details 1-wire female connector CAGE CLAMP® 2.5 mm² pitch 5 mm 3-pole 100% mismating protected 2.50 mm² light grey , EAN: 4044918353229.
