Product details

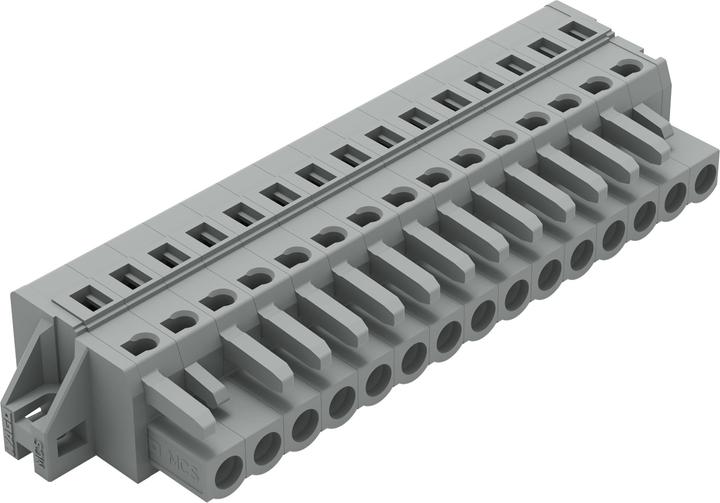

WAGO GmbH & Co. KG female connector 231-115/031-000

Manufacturer: WAGO GmbH & Co. KG
Designation: Female connector 15 poles, codable
Type: 231-115/031-000
Connection type: PCB to cable
Contact design: Socket
Number of poles: 15
Number of rows of plug contacts: 1
Contact pitch: 5 mm
Terminal pitch: 5 mm
Angle contact/conductor connection: 180° (horizontal)
Rated current: 16 A
Rated voltage: 320 V
Rated impulse voltage: 4 kV
Overvoltage category: III
Pollution degree: 2
Connectable conductor cross-section, fine-stranded without ferrule: 0.08 to 2.5 mm²
Connectable fine-stranded conductor cross-section with ferrule: 0.25 to 1.5 mm²
Connectable solid conductor cross-section: 0.08 to 2.5 mm²
Connectable stranded conductor cross-section: 0.08 to 2.5 mm²
Electrical connection type: Spring-loaded connection
Connectable cable type: Round cable
Material of contact coating: Tin
Material of contact: Other copper alloys
Material of insulator: Thermoplastic
Material of enclosure: Plastic
Coating of enclosure: Uncoated
Enclosure colour: Grey
Flammability class of insulating material according to UL 94: V0
With protective conductor: No
Operating temperature: -60 to 85 °C
Protection class (IP), mounted: IP20

WAGO GmbH & Co. KG female connector 231-115/031-000: further details
1-conductor female connector CAGE CLAMP® 2.5 mm²
Spacing: 5 mm
15-pole
Mounting flange: 2.50 mm²
Colour: Grey
EAN: 4044918342056.

Key specifications

Cable + connector type
Plug connectors
Item number
36758180

General information

Manufacturer
Wago
Category
Cables + Plugs
Manufacturer no.
231-115/031-000
Release date
28.6.2023

Colour

Colour
Grey

Material

Material group
Plastic
Material
Plastic, Thermoplastic resin

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
85 °C
Min. temperature
-60 °C
Manufacturer Type
031-000, 231-115
Number of cores
15 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

30-day right of return
24 Months Warranty (Bring-in)
