Wago Diode gate

WAGO GmbH & Co. KG diode gate open 289-101

Manufacturer: WAGO GmbH & Co. KG
Designation: Diode gate open
Diodes: 8 diodes without mounting plate
Type: 289-101
Explosion tested version "Ex e": No
Connectable conductor cross section fine stranded without ferrule: 0.08 to 2.5 mm²
Connectable conductor cross section finely stranded with ferrule: 0.25 to 1.5 mm²
Connectable conductor cross section solid: 0.08 to 2.5 mm²
Connectable conductor cross section stranded: 0.08 to 2.5 mm²
Rated current In: 1 A
Rated voltage: 250 V
Electrical connection version 1: Spring-cage connection
Electrical connection version 2: Spring-cage connection
Number of levels: 1
Number of terminals per level: 16
Levels internally bridged: No
Mounting type: Top-hat rail TH35
Insulator material: Thermoplastic
Operating temperature: -25 to 40 °C
Flammability class of the insulating material according to UL 94: V0
Width: 47 mm
Height: 65.5 mm
Depth: 31.5 mm
End plate required: No
Colour: Other
Component type: Diode

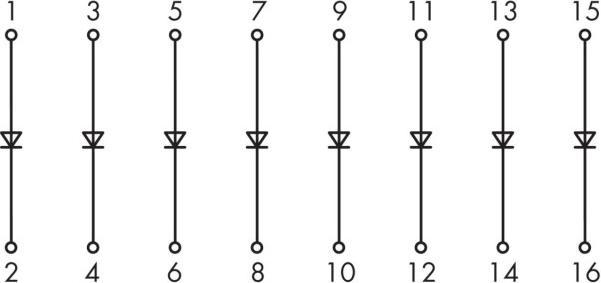

Component module with diode with 8 pieces of diode 1N4007 2.50 mm².
