Product details

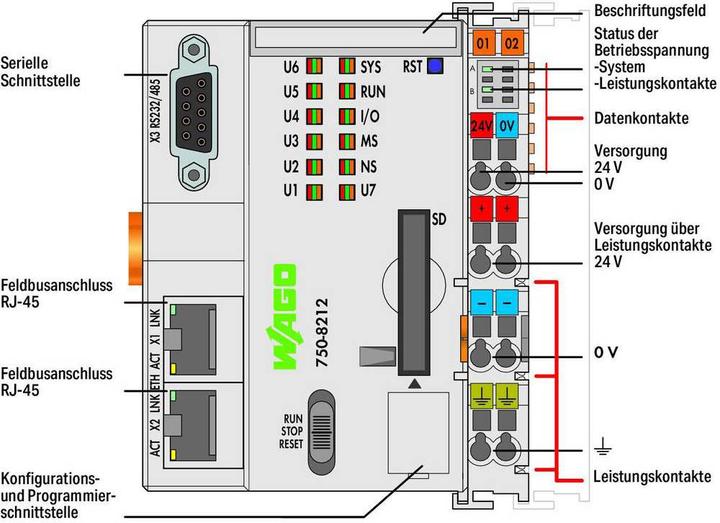

Controller PFC200; 2nd Generation; 2 x Ethernet, RS-232/RS-485
The PFC200 controller is a compact control unit for the modular WAGO I/O system. In addition to network and fieldbus interfaces, it supports digital and analog modules as well as special modules from the 750/753 series. The two Ethernet interfaces and the integrated switch allow for wiring in a line topology. An integrated web server provides the user with configuration options and status information about the PFC200. Typical applications for the PFC200 can be found not only in process industries and building automation but also in traditional machine and plant engineering, such as in packaging, filling, textile, manufacturing, metal, and woodworking machines or systems.
Advantages:
- Programmable according to IEC 61131-3
- Programmable with CODESYS V3.5 from FW23 or higher
- Programmable with WAGO-I/O-PRO V2.3 or e!COCKPIT up to FW22
- Direct connection of WAGO I/O modules
- 2 x Ethernet (configurable), RS-232/RS-485
- Linux operating system with RT-preemption patch
- Configuration with CODESYS, e!COCKPIT, or web-based management interface
- Maintenance-free.
mounting style | Top-hat rail |
Items per sales unit | 1 x |
Item number | 23039914 |
Colour | Grey |
Exact colour description | Light grey |
Material group | Plastic |
Material | Polyamide 6.6, Polycarbonate |
Operating voltage | 24 V |
mounting style | Top-hat rail |
Protection type (IP code) | IP20 |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 0.10 m |
Width | 0.08 m |
Height | 0.10 m |
Weight | 213.69 g |
Length | 8.80 cm |
Width | 8.20 cm |
Height | 10.60 cm |
Weight | 243 g |
