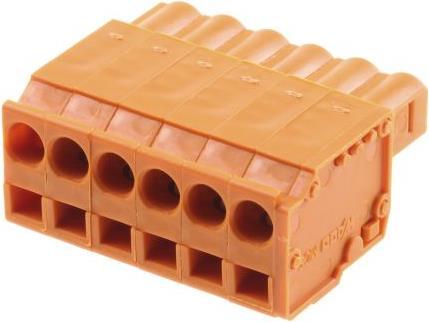

Wago Cable socket locking 5.08mm 6W

Number of contacts: 6
Pitch: 5.08 mm
Number of rows: 1
Gender: Female
Connection type: Cage spring
Type: Plug
Rated current: 15 A
Color: Orange
Operating voltage: 300 V
Series: MCS-MIDI Classic
Material: Nylon
Length: 45.48 mm

The Wago MCS-MIDI Classic connection terminal block plug with a 5.08 mm pitch allows for universal connections for all types of conductors and accommodates wires with a cross-section from 28 AWG to 12 AWG. These connectors feature a tool-free cage clamp connection for quick and easy assembly. A locking mechanism ensures a secure connection with the corresponding pin header. The MCS-MIDI Classic series terminal block plugs are codable and have a single coding finger. Integrated test ports are also included. These terminal blocks have a robust design and are shock and vibration resistant to ensure a reliable connection.

Features and benefits:

• Universal connection for all conductor types
• Can accommodate wire sizes ranging from 28 AWG to 12 AWG
• Tool-free spring clamp connection for quick and easy assembly
• Locking latch for secure connection
• Codable with a simple, integrated coding finger
• Integrated test ports
• Robust design for protection against shocks and vibrations.
