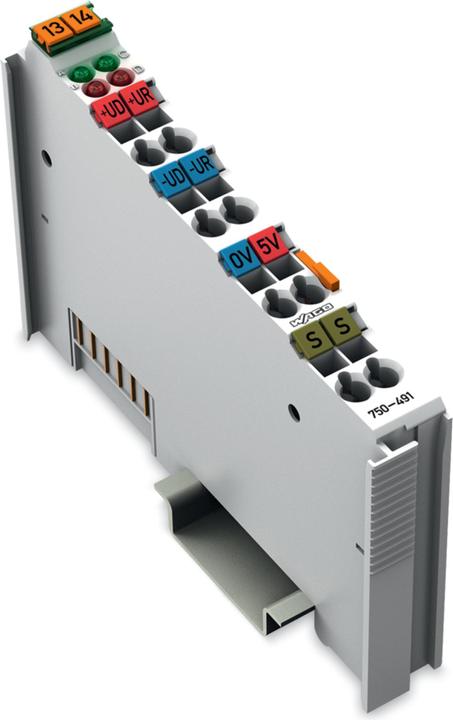

Wago Analogue I/O Module DC Series 750 24V 750-491

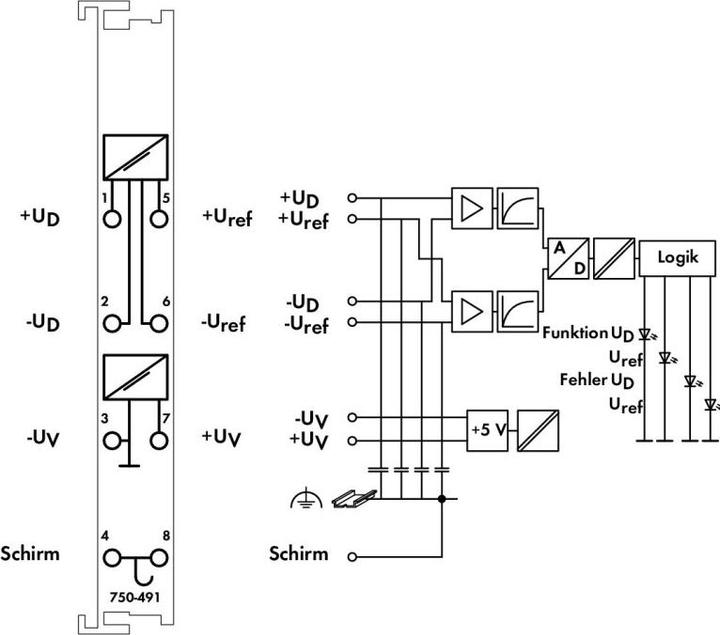

1-Channel Analog Input Resistance Bridges (Strain Gauges) The module allows for the direct connection of a resistance bridge. The bridge voltage U D and the supply voltage U ref of the bridge are digitized with a resolution of 16 bits. The two input channels for the resistance bridge are available as two 16-bit values for further processing. The measurement result can be calculated using the formula Measurement Value = U D / U ref. Field and system levels are galvanically isolated.
