Wago 870-531

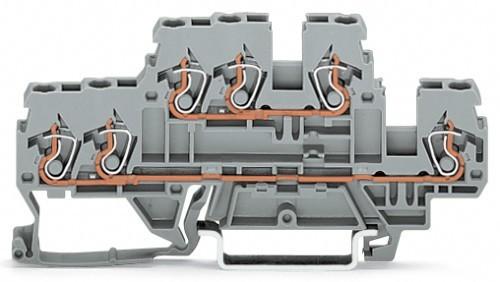

The WAGO 870-531 is a 3-wire double-decker terminal block designed for use in industrial automation. This through and through terminal block allows for efficient connection of electrical conductors and is suitable for mounting on DIN rails of types 35 x 15 and 35 x 7.5. With a maximum conductor cross-section of 2.5 mm² and the innovative CAGE CLAMP® technology, it provides a reliable and secure connection. The terminal block is made from high-quality thermoplastic and can withstand operating temperatures of up to 105 °C. Its compact design, with a width of only 5 mm and a height of 91 mm, enables space-saving installation in control cabinets and other applications.

• Maximum conductor cross-section of 2.5 mm² for fine-stranded and solid conductors
• Operating temperature up to 105 °C for versatile applications
• Spring-loaded connection for easy and secure wiring
• Suitable for mounting on DIN rails of types 35 x 15 and 35 x 7.5
• Flammability class of the insulating material according to UL 94: V0.
