Wago 2759-2102/271-1000 Visualisation Lighting Management M Single licence

Visualization Lighting Management
M
Single License
Online activation

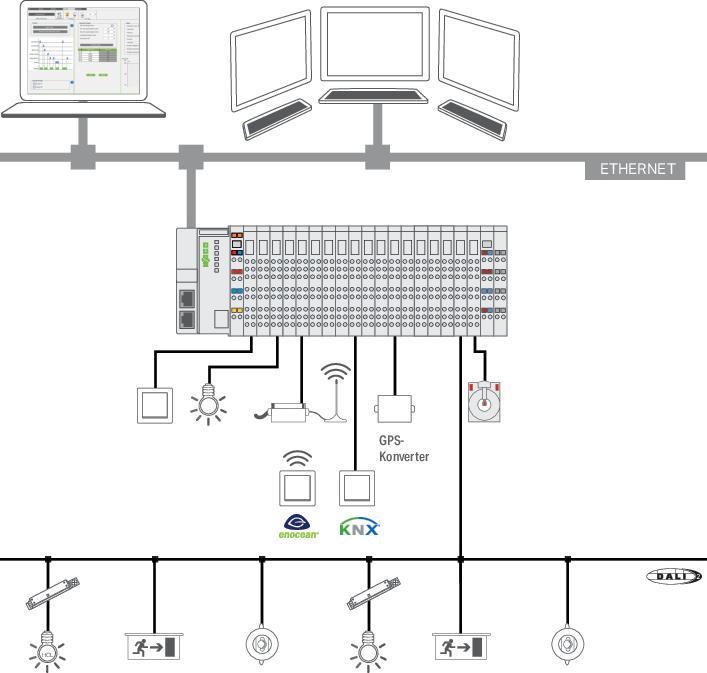

The WAGO Visualization Lighting Management provides an optional independent user interface for operating and monitoring the WAGO lighting management system (2759-0204/0261-1000). Whether on a desktop PC, touch panel, tablet, or smartphone, the entire lighting system can be conveniently and clearly operated during ongoing operations through a modern HTML 5 web user interface. By visualizing operational data, the user is always informed about the current operational status of the entire lighting system and can intervene manually if necessary. Simultaneous access to multiple lighting management controllers from the visualization is also possible. Depending on the number of controllers to be operated, three different license types are available. The visualization can be customized according to individual needs. In addition to language and color settings, control devices, users, rooms, and custom profiles can be created and managed. The profiles allow assigning a unique user interface to each control device or user.

Visualization S
1 Controller
Item No.: 2759-2101/271-1000

Visualization M
up to 3 Controllers
Item No.: 2759-2102/271-1000

Visualization L
up to 10 Controllers
Item No.: 2759-2103/271-1000

Compatible Controllers/Touch Panels:
Controller PFC200
2nd Generation
Item No.: 750-8212.
Touch Panel 600 Advanced Line
PIO3
Alternatively: Touch Panel with capacitive touch as a base unit: 762-53xx/8000-0002.
