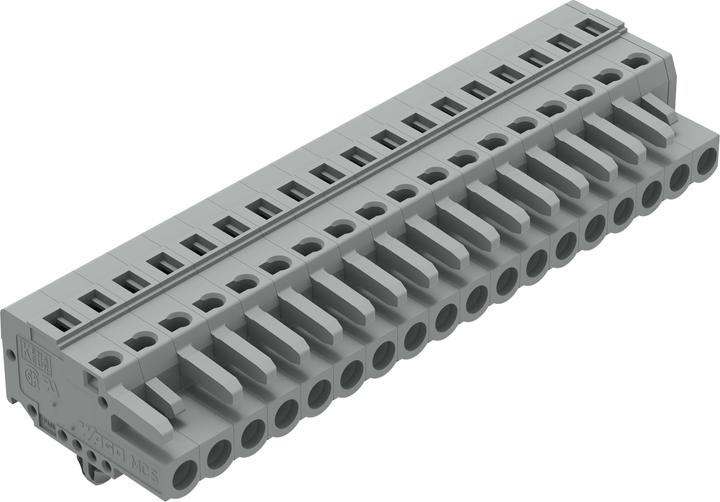

Wago 231-118/008-000

WAGO GmbH & Co. KG Female connector 231-118/008-000 Manufacturer :WAGO GmbH & Co. KG Designation :Female connector, codable Type :231-118/008-000 Connection type :PCB to cable Contact design :Socket Number of poles :18 Number of rows of plug contacts :1 Contact pitch :5 mm Terminal pitch :5 mm Angle contact/conductor connection :180° (horizontal) Rated current In :16 A Rated voltage :320 V Rated impulse voltage :4 kV Overvoltage category :III Pollution degree :2 Connectable conductor cross-section, fine-stranded without ferrule :0,08..2.5 mm² Connectable fine-stranded conductor cross-section with ferrule :0.25..1.5 mm² Connectable solid conductor cross-section :0.08..2.5 mm² Connectable conductor cross-section stranded :0.08..2.5 mm² Electrical connection type :spring-loaded connection Connectable cable type :round cable Material of contact coating :tin Material of contact :other copper alloys Material of insulating body :thermoplastic Material of housing :plastic Coating of housing :uncoated Housing colour :grey Flammability class of insulating material according to UL 94 :V0 With protective conductor :no Operating temperature :-60..85 °C Protection class (IP), mounted :IP20 WAGO GmbH & Co. KG Female connector 231-118/008-000: further details 1-conductor female connector CAGE CLAMP® 2,5 mm² Spacing 5 mm 18-pole Snap-in feet 2,50 mm² grey , EAN: 4044918342452.
