Product details

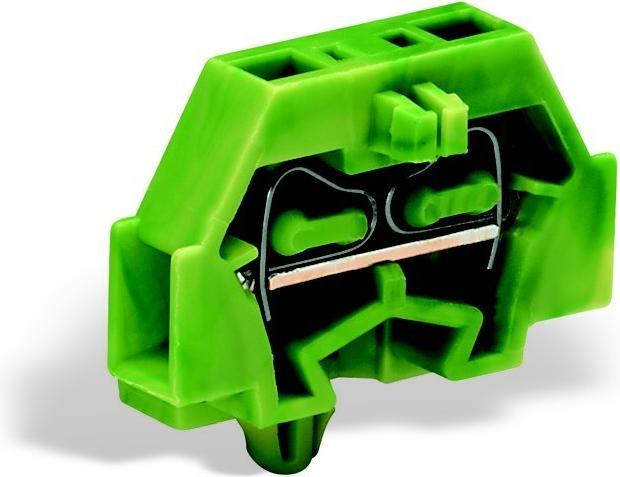

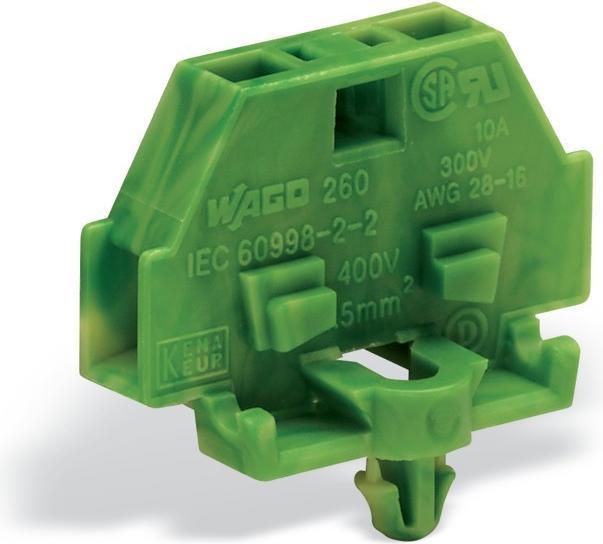

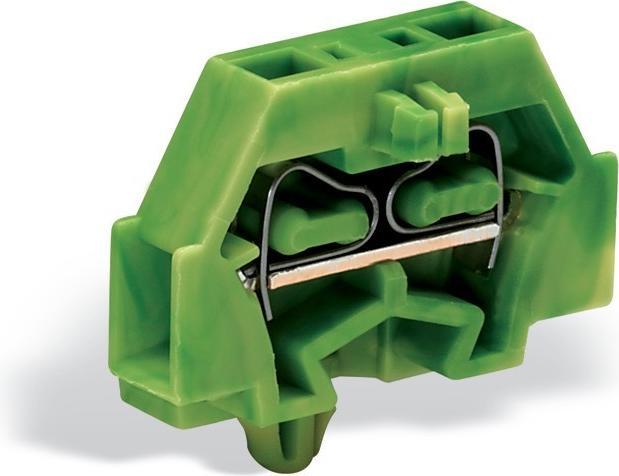

WAGO GmbH & Co. KG 2-L terminal 260-317

Manufacturer: WAGO GmbH & Co. KG
Designation: 2-L terminal block
Conductor cross-section flexible without ferrules: 0.08 - 1.5 mm²
Conductor cross-section solid: 0.08 - 1.5 mm²
Conductor cross-section stranded: 0.08 - 1.5 mm²
Rated current: 18 A
Rated voltage: 400 V
Electrical connection type 1: spring-loaded connection
Electrical connection type 2: spring-loaded connection
Number of poles: 1
Number of clamping points per pole: 2
Mounting type: other
Insulating body material: thermoplastic
Operating temperature: -30 to 85 °C
Flammability class of the insulating material according to UL 94: V0
Halogen-free: yes
Width: 5 mm
Height: 25.1 mm
Depth: 17.1 mm
End plate required: yes
Colour: green/yellow
Transparent: no

Further details: 2-conductor terminal block without push-button with snap-in foot, 1-pole for sheet thickness 0.6 - 1.2 mm, fixing hole Ø 3.5 mm, 1.5 mm² CAGE CLAMP®, green-yellow.

Key specifications

Item number
34363941

General information

Manufacturer
Wago
Category
Cables + Plugs
Manufacturer no.
260-317
Release date
17.5.2023

Colour

Colour
Green

Material

Material group
Plastic
Material
Thermoplastic resin

Cable + Connector Features

Max. temperature
85 °C
Min. temperature
-30 °C

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
300 Piece

Product dimensions

Length
2.50 cm
Width
0.50 cm
Height
2.51 cm

30-day right of return
24 Months Warranty (Bring-in)
