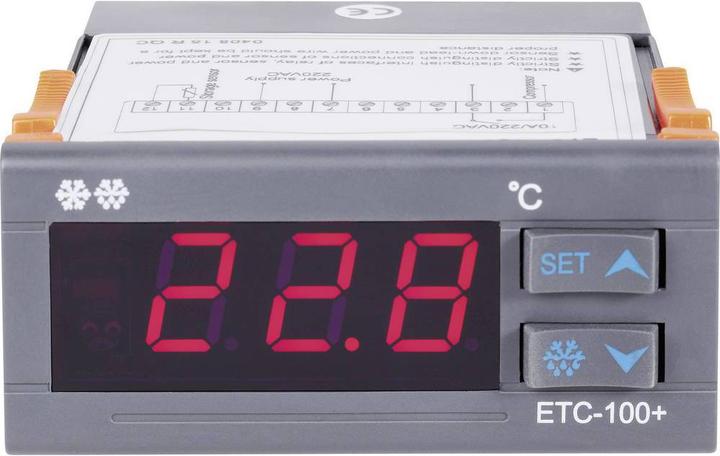

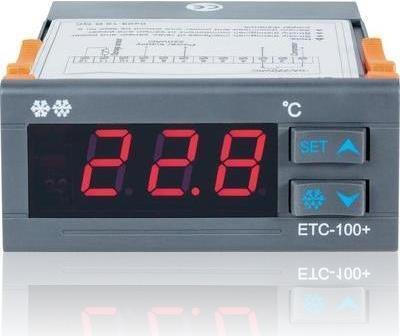

Voltcraft Temperature controller ETC-100
Heating actuatorDelivered Mon, 4.5.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–
Product details
The temperature controllers ETC-100+ and ETC-200+ are characterized by their ease of use and reliability. The ETC-100+ model is specifically designed for cooling applications (the relay activates when the measured temperature exceeds the upper temperature limit). The ETC-200+ is suitable for both cooling and heating applications and is equipped with two relay outputs. In cooling mode, both the ETC-100+ and ETC-200+ offer a selectable delay time of 0 to 30 seconds. Additionally, an alarm sounds if there is a fault in the sensor connection or if the temperature falls outside the permissible range (-40 to +120 °C). In cooling mode, the ETC-200+ also features an automatic defrost function.
Actuator type | Heating actuator |
Operating voltage | 230 V |
Mounting type | Built-in installation |
Items per sales unit | 1x |
Item number | 8437675 |
Manufacturer | Voltcraft |
Category | Actuator |
Manufacturer no. | 196979 |
Release date | 20.4.2018 |
Actuator type | Heating actuator |
rated current | 10 A |
Operating voltage | 230 V |
Number of switching outputs | 1x |
Mounting type | Built-in installation |
Protection type (IP code) | IP54 |
Smart home | Not compatible |
Country of origin | China |
CO₂ emissions | 8.7 kg |
Climate contribution | CHF 0.21 |
Items per sales unit | 1x |
Length | 88 mm |
Width | 75 mm |
Height | 34.50 mm |
Length | 10.70 cm |
Width | 9.80 cm |
Height | 8.40 cm |
Weight | 290 g |
