Viveroo 510171PD iPad wall mount anthracite lacquered

Viveroo iPad wall mount 510171PD
Manufacturer: Viveroo
Designation: iPad wall mount
Lacquer: Dark Steel
Type: 510171PD
Suitable for: tablet computer
Mounting type: wall
Colour: anthracite lacquered

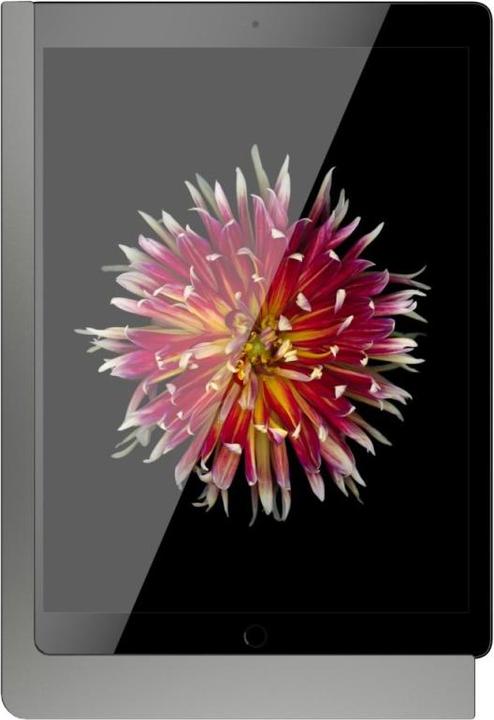

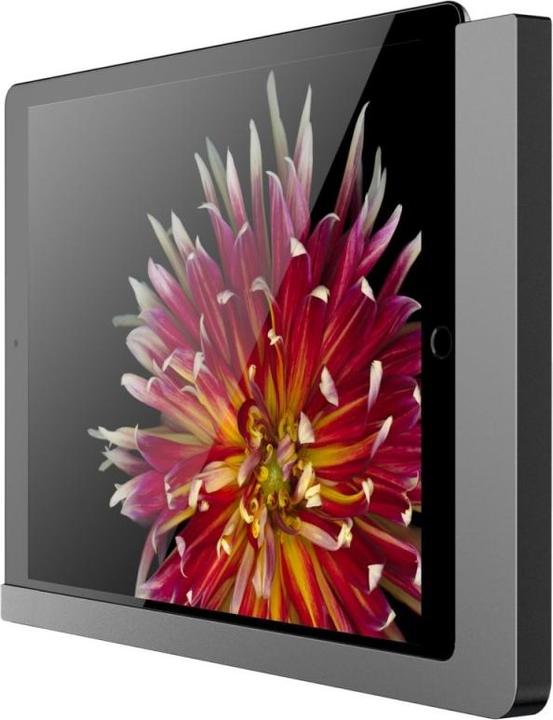

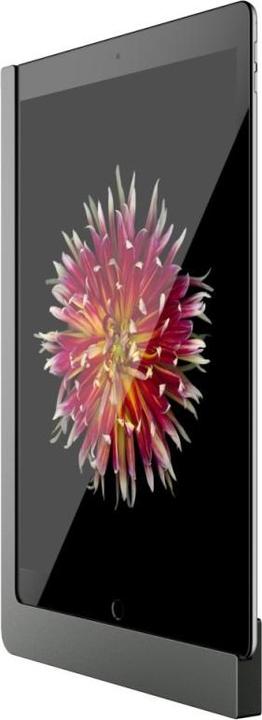

The Viveroo iPad wall mount 510171PD is a wall-mounted docking station for the iPad. The iPad can be removed, allowing it to be used as a mobile device and reset by the user. It features fanless operation without motorized drives and is designed for easy one-handed insertion and removal of the iPad. Installation can be done in masonry, concrete, or cavity walls using the included in-wall mounting set, which consists of a flush-mounted cavity wall box and power supply unit.

Product features include convertibility to different iPad generations by replacing the frame, while the mounting plate and flush-mounted cavity wall box remain in place. The charging electronics are designed for continuous operation with passive cooling and fast charging capabilities for the iPad. It includes an Apple-certified Lightning connector and is milled from a single block of aluminum, available in Super Silver (aluminum look in Apple design) or Dark Steel (dark stainless steel look).

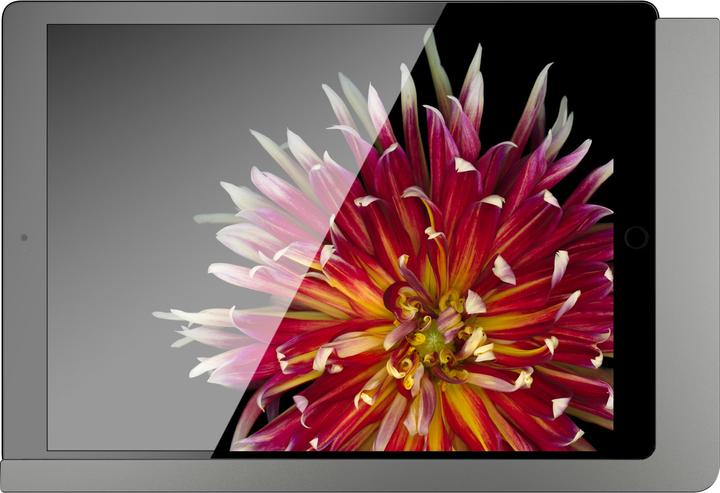

The connection specifications are 5.2 Vdc at 12.5 watts, with a power supply of 100-240 Vac / 50-60 Hz included in the mounting set. It can be installed in either longitudinal or horizontal format and offers an optional mechanical locking function for theft protection, as well as an optional iPad Ethernet adapter for a wired network connection.

Technical data:

• Passive cooling
• Nominal voltage: 5.2 Vdc
• Electrical power consumption: 12.5 W
• Supply: Via power supply: IN: 100-240 Vac / 50-60 Hz, OUT: 5.2 Vdc
• Ambient temperature: 0 to 35 °C
• Storage/transport temperature: -10 to +50 °C

Product dimensions: compatible with iPad generation, specifically the iPad 10.2 inch (2019/2020 models). Compatible iPad model numbers include A2197, A2198, A2200, A2270, A2428, A2429, A2430.
EAN: 4260374571841.
