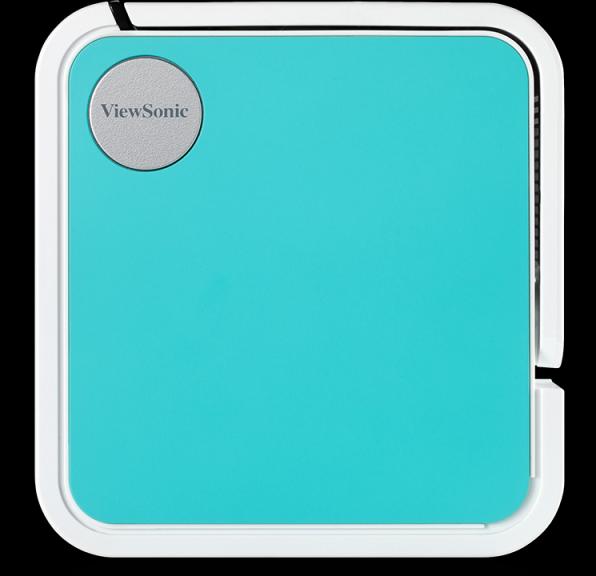

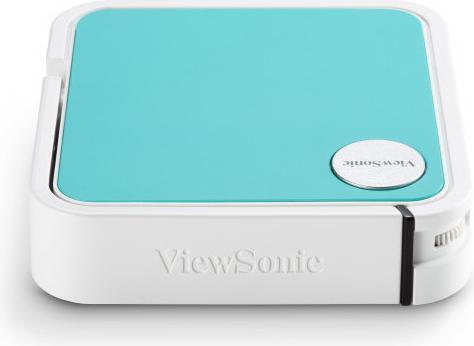

The M1 mini Plus features a built-in battery with power supply compatibility, offering true portability and hours of entertainment without the need for a power cord. With its lightweight design and dimensions of just 4" x 4", this tiny projector can easily fit in your handbag, backpack, or back pocket, making it perfect for on-the-go entertainment. The M1 mini Plus also comes with interchangeable panels in three different colors - Gray, Yellow, and Teal - allowing you to customize the projector's appearance to match your style.

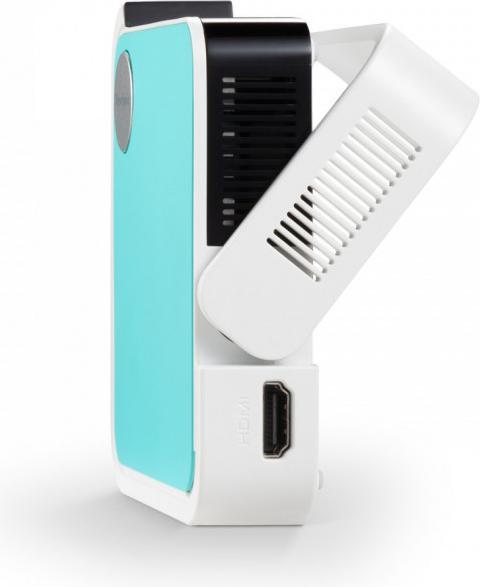

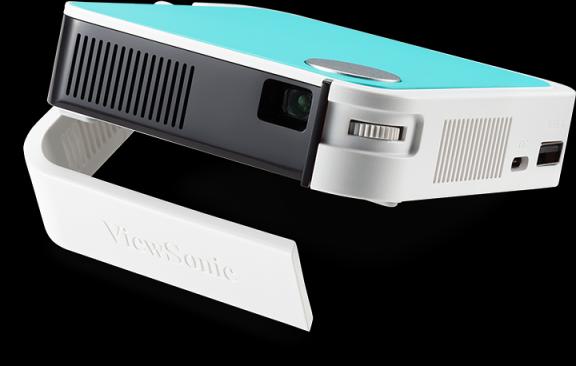

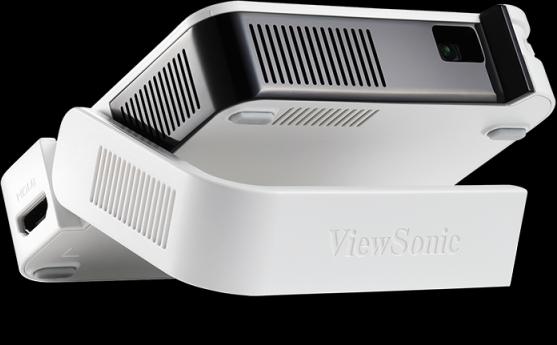

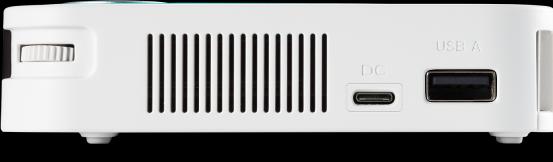

An integrated smart stand provides flexible positioning and also serves as a lens cover. A built-in JBL speaker with Bluetooth ensures clear and crisp sound, while a USB reader port allows for multimedia playback from an external dongle. The compact and lightweight M1 mini Plus can be used in a child's room, in the garden, while camping, in a hotel, or anywhere you go. Additional versatile connectivity options include HDMI, USB Type A, and USB Type C. This makes the M1 mini Plus a great choice for sharing and displaying videos and other multimedia content.
Projector type | Mini projector |
Projector technology | DLP |
Contrast ratio | 500 :1 |
Throw ratio | 1.2:1 |
Equipment + Functions | Integrated loudspeakers |
Image resolution | 854 x 480 pixels |
Max. Projection area (inch) | 100" |
Documents | |
Item number | 13378526 |
Manufacturer | Viewsonic |
Category | Projector |
Manufacturer no. | M1 MINI PLUS |
Release date | 26.6.2020 |
Sales rank in Category Projector | 111 of 950 |
External links |
Colour | Black, Grey, Turquoise |
Projector type | Mini projector |
Projector technology | DLP |
Installation place | Table |
Focus type | Manual focus |
Wireless transmission | Bluetooth, Wi-Fi |
Aperture | f/1.7 |
Focal length | 7.5 mm |
Equipment + Functions | Integrated loudspeakers |
Aspect ratio | 16:9 |
Display resolution | WVGA |
Image resolution | 854 x 480 pixels |
4K Technology | Native Ultra-HD |
Contrast ratio | 500 :1 |
Brightness (ANSI) | 50 lm |
Projection ratio | Variable |
Max. Projection area (inch) | 100" |
Horizontal scanning area | 15 - 102 kHz |
Vertical scanning range | 23 - 120 Hz |
Min. throw ratio | 1.20 :1 |
Max. throw ratio | 1.20 :1 |
Image adjustment | Keystone correction |
Zoom type | Fixed |
Min. projection distance (metres) | 0.64 m |
Max. projection distance (metres) | 2.66 m |
Multimedia features | Integrated loudspeakers, Music, Photo |
Video connections | HDMI (1x) |
Audio Connections | HDMI (1x) |
Max. noise level | 26 dB |
Noise level in power saving mode | 25 dB |
Bulb type | LED |
Lamp technology | LED |
Lamp service life | 30000 h |
Life energy-saving mode | 30000 h |
Power supply | Rechargeable battery operated |
Conventional energy consumption | 20 W |
Power consumption (standby) | 0.50 W |
CO₂-Emission | |
Climate contribution |

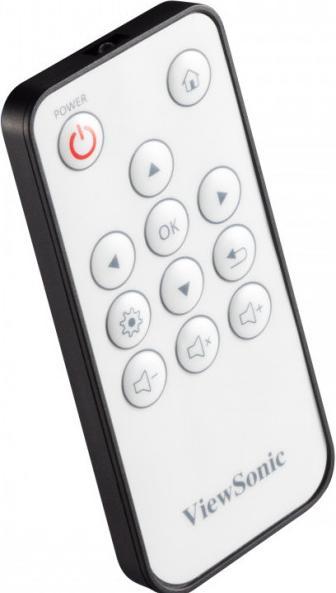

Scope of delivery | Quick Start Guide, RC transmitter |
Length | 110 mm |
Width | 104 mm |
Height | 27 mm |
Weight | 0.30 kg |
Length | 18.50 cm |
Width | 15.10 cm |
Height | 6.80 cm |
Weight | 764 g |
