Velleman Mini Pic-Plc Application Module

Velleman VM142 Mini PIC-PLC Application Module, 9 freely programmable inputs (4) / outputs (5)

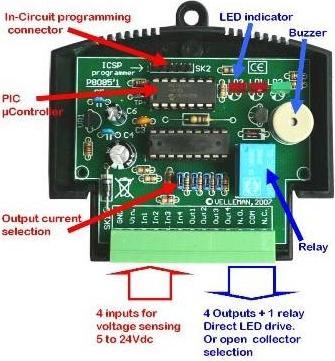

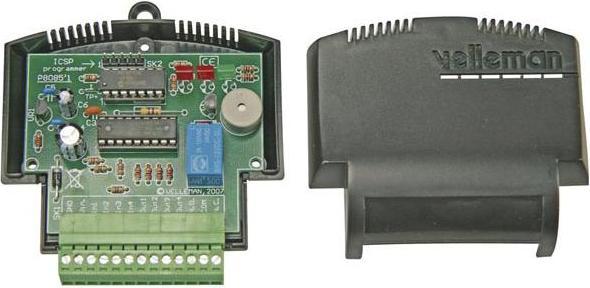

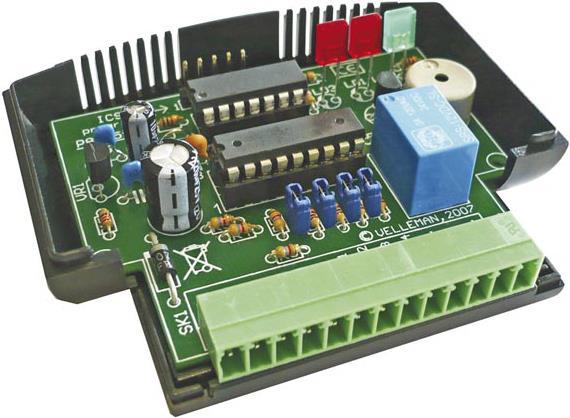

This application module may look small, but it packs a powerful performance - everything depends on your programming skills. Create your own application without needing to build the hardware yourself. All buffered inputs and outputs are ready to use. The module features an on-board LED, a relay output, and a buzzer. You only need one of our programming modules.

Features

• 9 freely programmable inputs/outputs (4 inputs, 5 outputs)
• PIC16F630 microcontroller from Microchip
• LED indicators for power supply and relay output
• 1 freely programmable LED indicator
• On-board mini buzzer for acoustic signals
• On-board ICSP connector for programming
• PIC programmer supports PIC16F630

Technical Specifications

• Power supply: 12V DC (not stabilized) / 100mA
• 4 inputs (with voltage detection)
• Input signal voltage: 5 - 24V DC, @ 4K7
• 4 NPN transistor outputs ("Open Collector", sink):
• Current transistor output: max. 100mA each
• Direct 12V relay control possible (safety diode not required)
• 1 relay output with NO/NC contact (2A)
• Microcontroller speed: fixed 4MHz internal oscillator
• Dimensions: 80 x 70 x 25 mm.
