Product details
Technical data

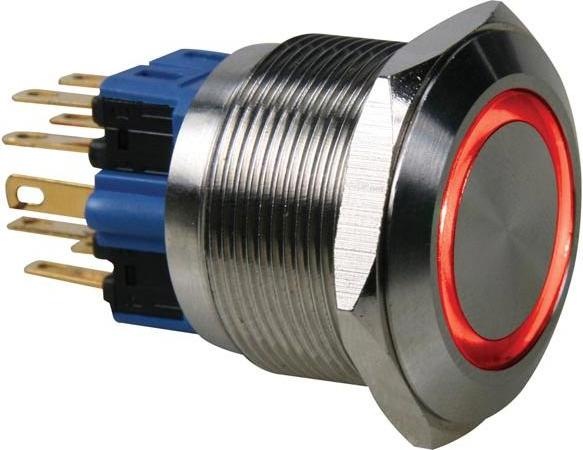

DPST 1NO 1NC
Colour: red
Power supply LED-Ring: 12VDC
Type: (On)-Off

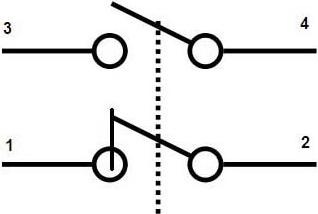

connections: NC (normally closed): 1-2 NO (normally open): 3-4
NC (normally closed): 1-2
NO (normally open): 3-4
Operating temperature: -20°C ~ +70°C
Humidity: 45 ~ 85% RH
Insulation resistance: > 1000M Ohm
Contact resistance: < 50m Ohm
mechanical life: 1.000.000 cycles
electrical lifetime: 50.000 cycles
Dielectric strength: between the terminals of one pole: - between the terminals of different poles: 2000VAC
between the connections of one pole: -
between the terminals of different poles: 2000VAC
Material housing: stainless steel
Operating pressure: 3~8N
IP protection class: IP65
max. voltage: 230VAC / 5A
230VAC / 5A

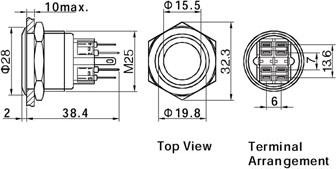

Bore: Ø25mm
