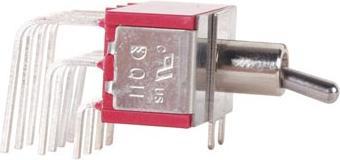

Velleman 90° Vertical Toggle Switch 4Pdt On-On

Technical data
Switch position: 2-3, 5-6, 8-9, 11-12: ON OPEN: - 2-1, 5-4, 8-7, 11-10: ON
2-3, 5-6, 8-9, 11-12: ONE
OPEN: -
2-1, 5-4, 8-7, 11-10: ON
Remark: -
contacts: 5A with a resistance load of 120Vac or 28Vdc
electrical life: 50000 switching cycles at max. load
Contact resistance: initially max. 10mohm at 2-4Vdc / 10mA for silver-plated and gold-plated contacts
Insulation resistance: min. 1000Mohm
Dielectric strength: 1000Vrms at sea level
Operating temperature: -30°C to +85°C
Materials: Body: melamine or diallyl phthalate (DAP) Lever: chrome plated brass Thread: nickel plated brass Body: stainless steel Contacts: silver plated Terminals: silver plated brass Centre contact: silver plated brass
Housing: Melamine or diallyl phthalate (DAP)
Lever: chrome-plated brass
thread: nickel-plated brass
Housing: stainless steel
contacts: silver plated
connections: silver plated brass
center contact: silver plated brass
