Product details

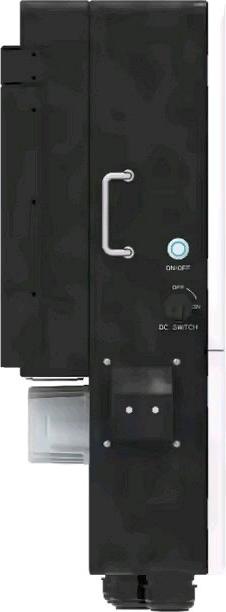

The V-TAC Hybrid Inverter SUN20KSG05LP3EUSM2 is a powerful device specifically designed to convert direct current from solar panels into three-phase alternating current. With a maximum output power of 20 kW and two MPPT trackers, this inverter enables efficient use of solar energy in various applications, whether in residential buildings, commercial facilities, or industrial plants. The inverter is suitable for operation in a wide temperature range from -40°C to +60°C and offers high reliability and efficiency with a maximum efficiency of 97.6%. Thanks to its IP65 protection rating, it is also protected against dust and water, expanding its usability in different environments. The integrated communication interface allows for easy monitoring and control of the system, enhancing user-friendliness.
- Three-phase inverter with a maximum power of 20 kW
- Two MPPT trackers for optimized energy capture
- High efficiency of up to 97.6%
- IP65 protection rating for use in demanding environments
- Active cooling for improved performance and longevity.
input voltage | 160 V |
Output voltage | 400 V |
Power output | 20000 W |
Voltage transformer type | Solar voltage transformer |
Length | 27.90 cm |
Width | 69.93 cm |
Height | 42.20 cm |
Item number | 52616670 |
Manufacturer | V-TAC |
Category | Power inverters |
Manufacturer no. | 12185 |
Release date | 4.11.2024 |
Voltage transformer type | Solar voltage transformer |
input voltage | 160 V |
Output voltage | 400 V |
Power output | 20000 W |
Electric current output | 36 A |
CO₂-Emission | |
Climate contribution |
Length | 27.90 cm |
Width | 69.93 cm |
Height | 42.20 cm |
