Ubisys Universal dimmer D1 ZigBee 3.0
Dimming actuatorMore than 10 pieces in stock at supplier
Product details
The Ubisys D1 ZigBee 3.0 universal dimmer is an innovative dimming actuator specifically designed for integration into smart home systems. This in-wall dimmer allows for the control of dimmable LEDs, incandescent bulbs, halogen lamps, and fluorescent tubes. With support for the ZigBee 3.0 standard, it offers reliable wireless communication and can be easily installed under a conventional in-wall switch. The dimmer supports both leading-edge and trailing-edge dimming techniques, making it versatile for various applications. With a maximum power of 500 VA, it is suitable for different lighting scenarios and contributes to energy efficiency in modern living spaces. Its compact design allows for easy installation, while the high-quality construction ensures durability.
- Supports ZigBee 3.0 for wireless communication
- Compatible with dimmable LEDs, incandescent bulbs, halogen lamps, and fluorescent tubes

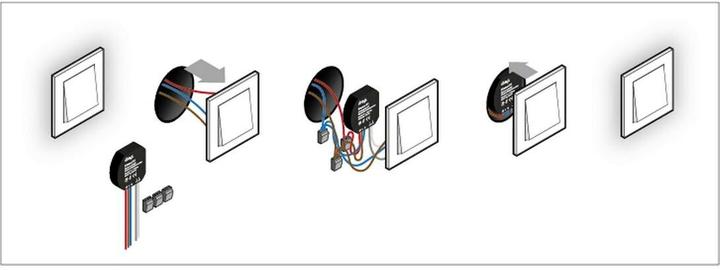

- Easy installation under conventional in-wall switches
- Versatile dimming techniques: leading-edge and trailing-edge
- Maximum power of 500 VA for flexible applications.
Actuator type | Dimming actuator |
Operating voltage | 230 V |
Mounting type | Flush-mounted |
Item number | 20669723 |
Manufacturer | Ubisys |
Category | Actuator |
Manufacturer no. | 1045 |
Release date | 21.4.2022 |
Colour | Black |
Exact colour description | Black |
Actuator type | Dimming actuator |
Max. Switching capacity | 500 W |
rated current | 2.50 A |
Operating voltage | 230 V |
Mounting type | Flush-mounted |
Smart home | Compatible |
Radio frequency | 2400000000 Hz |
Requires Smart Home Hub | No |
CO₂ emissions | 3.31 kg |
Climate contribution | CHF 0.11 |

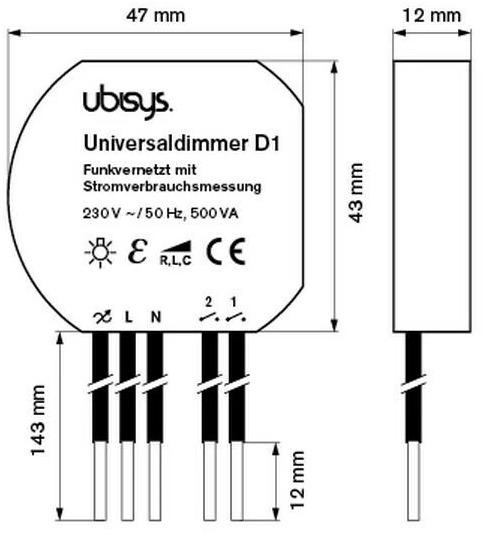

Length | 43 mm |
Width | 47 mm |
Height | 12 mm |
Weight | 50 g |
Length | 19.20 cm |
Width | 5.80 cm |
Height | 1.80 cm |
Weight | 53 g |
