Ubiquiti XR2 - 802.11b/g miniPCI Card

Mini PCI Express
Ratings
BrandMore from Ubiquiti
Delivered between Tue, 13.5. and Mon, 19.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

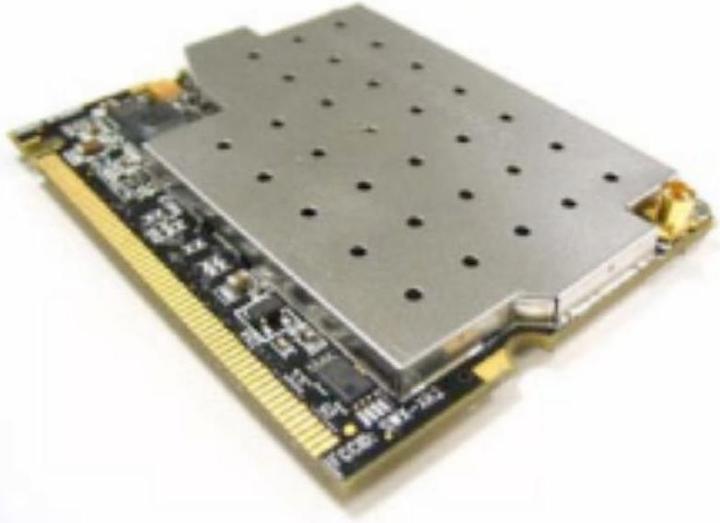

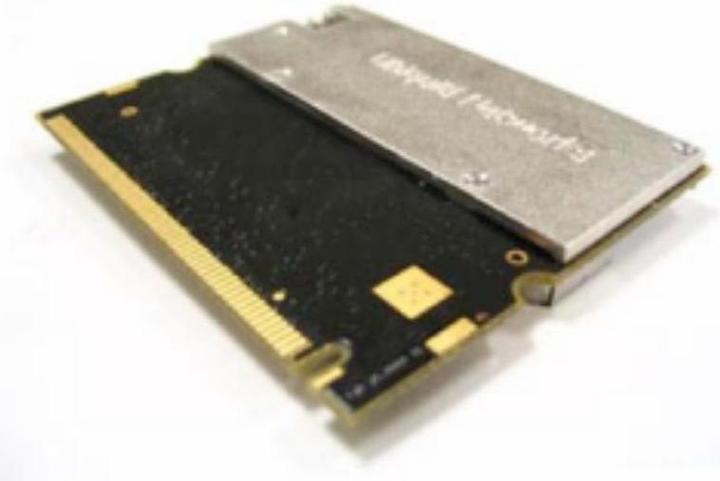

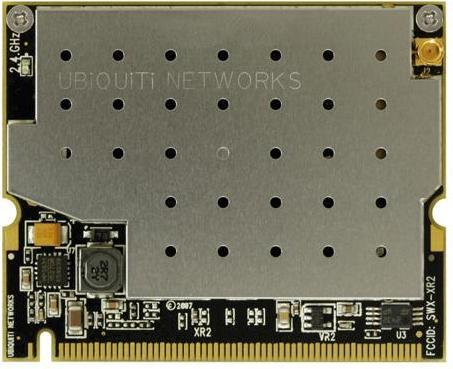

Ubiquiti Networks XtremeRange 2 XR2 - 802.11b/g miniPCI Card

The XtremeRange series of radio modules by Ubiquiti leverages their strong knowledge and experience gained from customer interactions, field performance evaluations, and lab research, improving upon the original and highly successful SuperRange series of high-performance 802.11 radio cards. The XtremeRange2 represents the first true carrier-class 802.11b/g-based 2.4 GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the highest levels of performance and reliability without compromise.

Features

  • 600 mW output power
  • ESD/EMP protection
  • Industry-best sensitivity
  • Extended temperature
  • Enhanced filtering
  • 5/10/20/40 MHz channels
  • MMCX antenna connector

Specifications

  • Chipset: Atheros, 6th generation, AR5414
  • Radio operation: IEEE 802.11b/g, 2.4 GHz
  • Interface: 32-bit mini-PCI Type IIIA
  • Operation voltage: 3.3 V DC
  • Antenna ports: Single MMCX
  • Temperature range: -45°C to +90°C (extended temperature version up to +95°C)
  • Security: WPA, WPA2, AES-CCM & TKIP encryption, 802.1x, 64/128/152 bit WEP
  • Data rates: 6 Mbps, 9 Mbps, 12 Mbps, 24 Mbps, 36 Mbps, 48 Mbps, 54 Mbps
  • TX channel width support: 5 / 10 / 20 / 40 MHz
  • RoHS compliance: Yes
  • Wireless modular approvals: FCC Part 15.247, IC RS210

ESD/EMP Cable Specifications

  • Cable dimensions: 8 inches in length, 0.55 mm diameter (26 AWG)
  • Terminal material / dimensions: Copper / 4.3 mm diameter
  • Attachment procedure: Ground end to enclosure point tied to earth ground

Range Performance

  • Indoor (antenna dependent): Up to 200 m
  • Outdoor (antenna dependent): Over 50 km

Driver Information

  • Operating system: Support for Linux MADWIFI, Windows XP, Windows 2000
  • Advanced mobility / quick handoff: Windows XP/2000 utility with enhanced mobility driver from Ubiquiti
  • Cisco support: CCX 4.0 supported driver/utility also available from Ubiquiti.

Key specifications

Item number
21594519

General information

Manufacturer
Ubiquiti
Category
Network cards
Manufacturer no.
XR2
Release date
1.8.2022

Network card properties

Hardware interface
PCI Express Mini Card
Wi-Fi encryption
WPA, WPA2
Number of ports
1 x

Wi-Fi standard

Wi-Fi standard
Wi-Fi 3 / 802.11g
Wi-Fi frequency band
Dual band

Mobile internet properties

Max. data transfer rate
54 Mbit/s

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece(s)

Product dimensions

Length
203.20 mm
