Ubiquiti UniFi Switch Flex Mini
5 PortsFree shipping starting at 50.–

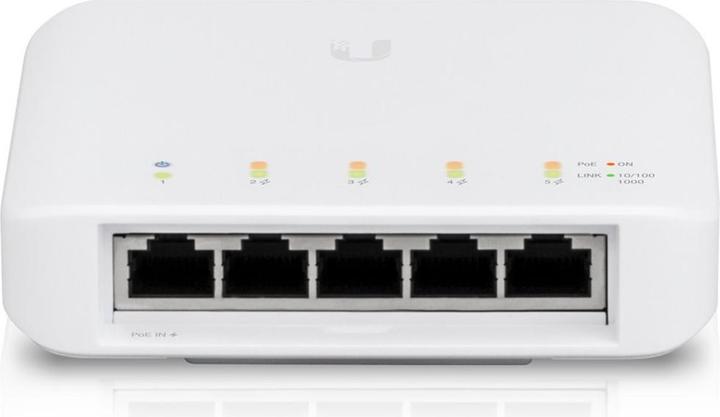

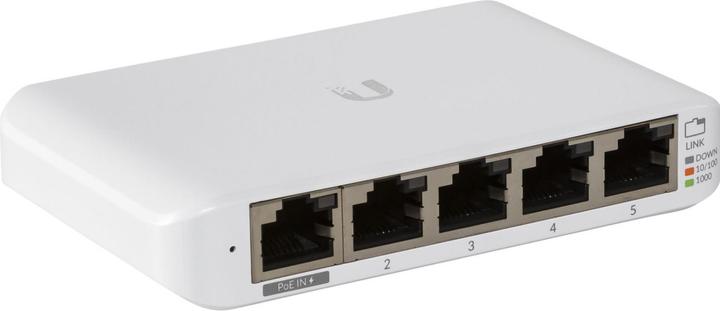

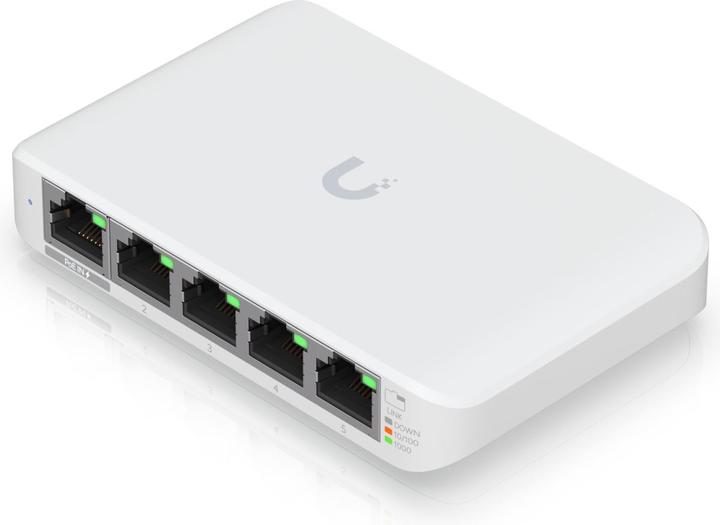

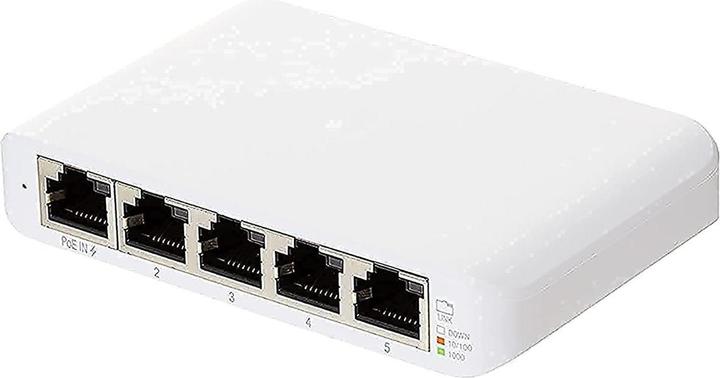

USW Flex Mini - Compact 5-Port Gigabit Switch

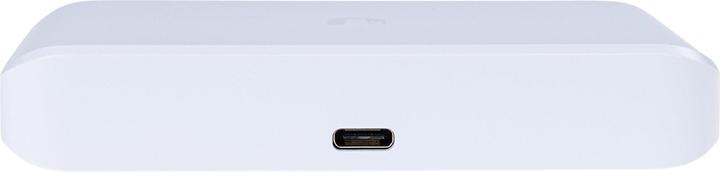

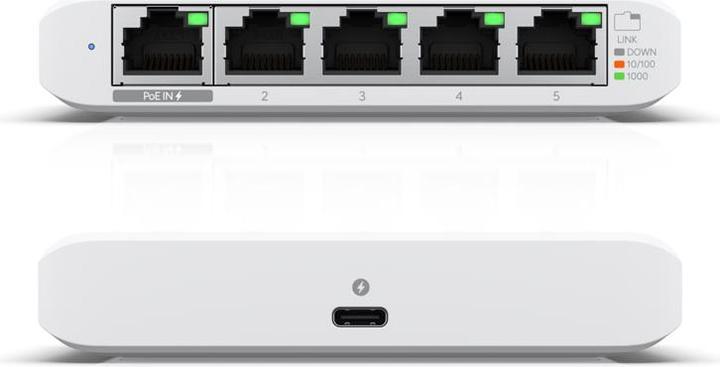

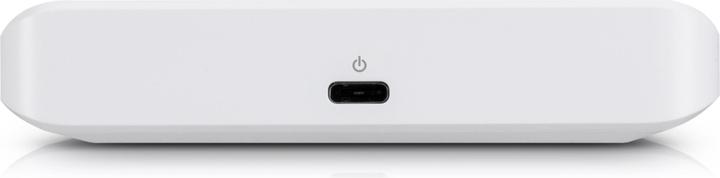

Build and expand your network with the UniFi Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is an intelligently managed Gigabit switch. It features 5 RJ45 Ethernet ports and 1 Gigabit connection to your devices. Power the USW-Flex-Mini using the included USB Type C power adapter or via 802.3af PoE Ethernet on port 1.
Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
Weight: 150 g

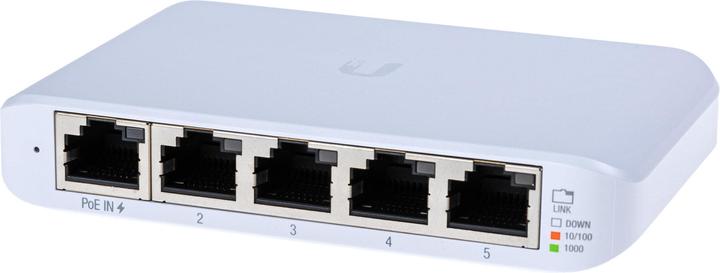

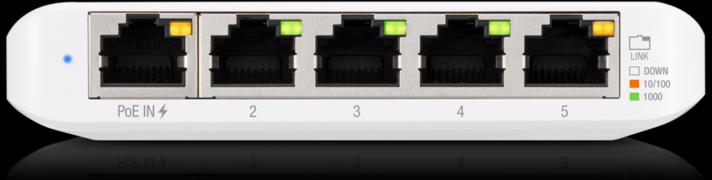

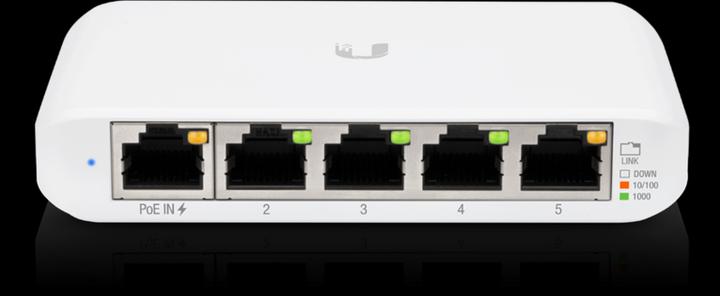

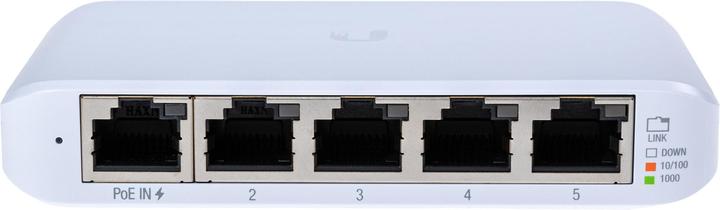

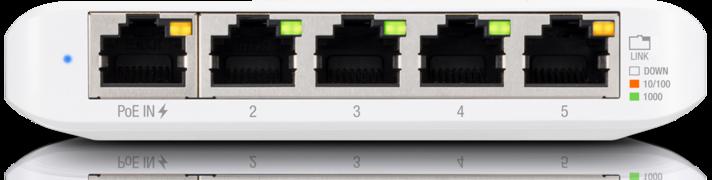

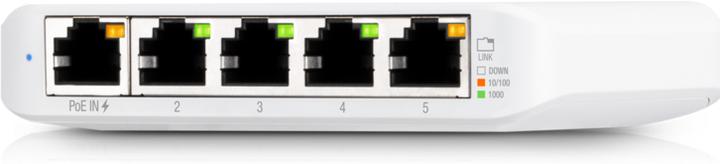

Network Interfaces: 5 RJ45 ports with 10/100/1000 Mbps
PoE In Interface: 802.3af/at PoE (Pins 1, 2+; 3, 6-)
Max Power Consumption: 2.5 W

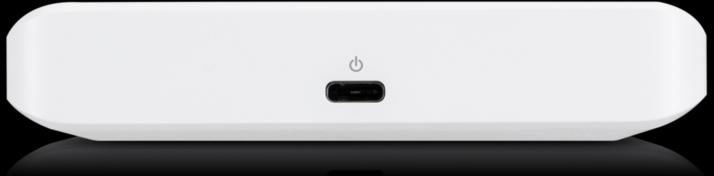

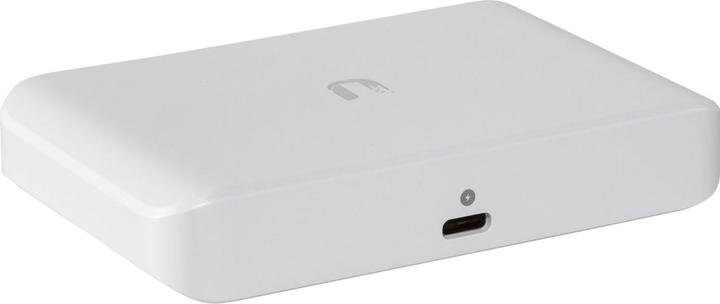

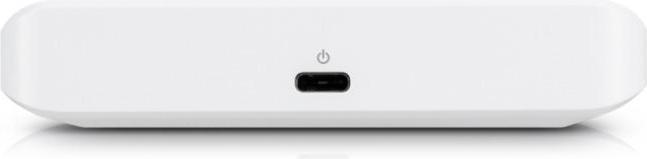

Power Supply Method: USB Type C, 5 V; 802.3af/at PoE (44 - 57 V DC, 0.05 - 0.04 A)

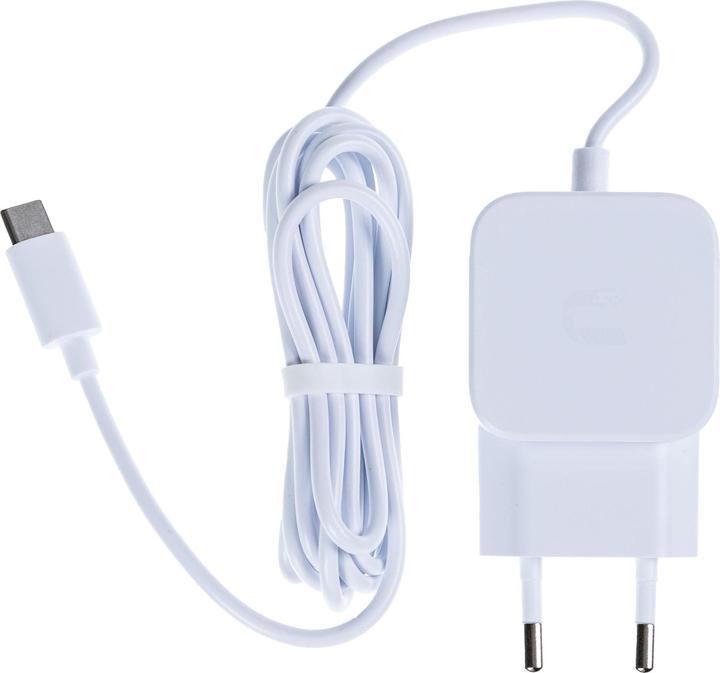

Power Supply: 5 V, 1 A adapter
Voltage Range: USB Type C: 4.7 - 5.2 V DC; 802.3af/at PoE: 44 - 57 V DC

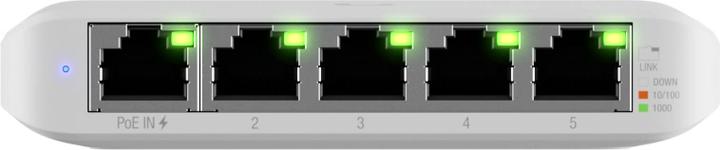

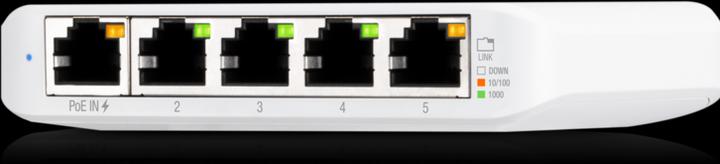

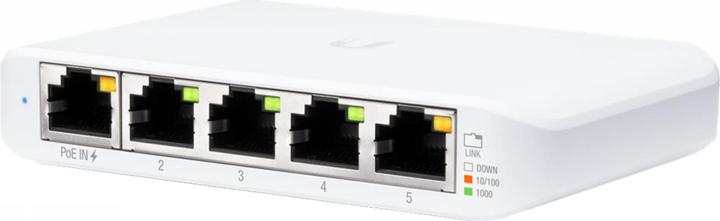

LEDs: System: Status; RJ45 Data Ports: Connection/Speed/Activity
ESD/EMP Protection: +/- 16 kV air, +/- 12 kV contact
Operating Temperature: -5°C to 45°C (23°F to 113°F)
Operating Humidity: 10 to 90% non-condensing
Certifications: CE, FCC, IC.
Max. port speed | 1000 Mbit/s |
Network connections | RJ45 (5x) |
Switchtype | Desktop switch |
Number of PoE ports | 1 portion |
Management | Smart managed |
Switch functions | Quality of Service (QoS) |
Item number | 12745975 |
Manufacturer | Ubiquiti |
Category | Network switches |
Manufacturer no. | USW-FLEX-MINI |
Release date | 13.2.2020 |
Sales rank in Category Network switches | 6 of 5907 |
May include power adapter | No |
Colour | White |
Exact colour description | White |
Switchtype | Desktop switch |
Number of ports | 5 ports |
Number of PoE ports | 1 portion |
PoE Standard | 802.3af (PoE), 802.3at (PoE+) |
Management | Smart managed |
Switch functions | Quality of Service (QoS) |
switching layer | Layer 2 |
Switching capacity | 10 Gbit/s |
VLAN type | Static VLAN |
Max. Number of VLANs | 8 x |
IGMP Snooping | V2 |
Manufacturer Type | ETC-FLEX-MINI-EU |
Network connections | RJ45 (5x) |
Max. port speed | 1000 Mbit/s |
Max. port speed RJ45 | 1000 Mbit/s |
Max. Port speed | 1000 Mbps / 1 Gbps |
Application range | Home use |
Network operation | Power supply unit redundant |
Power consumption | 2.50 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1A mains adapter, 1x 5V, 1x switch |
Length | 7.02 cm |
Width | 10.72 cm |
Height | 2.12 cm |
Weight | 150 g |
Length | 18.70 cm |
Width | 12.10 cm |
Height | 4.60 cm |
Weight | 230 g |
