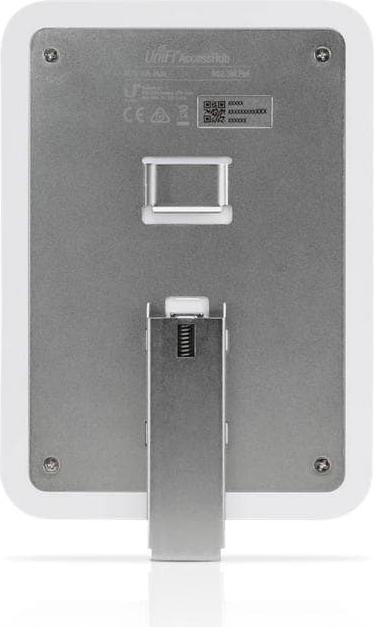

Ubiquiti unifi access hub - access control

The UniFi Access Hub is an intelligent IP network single-door controller that is part of the UniFi Access solution.

The UniFi Access Hub features versatile interfaces, including support for most electric strikes, locks, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE-powered reader interfaces minimize wiring efforts and provide a convenient way to add a UniFi G3 Flex security camera for additional safety. The seamlessly integrated UniFi Access solution is managed with the UniFi Access application. Easily manage users, visitors, schedules, and access policies through the intuitive browser-based interface.

Features:

• Powered by 802.3bt (PoE++) switch
• Three 802.3af PoE ports for UniFi readers and G3 Flex security camera
• 12V relays and dry relays compatible with most locks
• Four inputs for motion sensors, request-to-exit devices, and door position switches
• Managed with UniFi Access application in UDM-Pro
• DIN rail mountable
• Dimensions: 190 x 126 x 33 mm (7.48 x 4.96 x 1.29")
• Weight: 457 g
• Housing features: Plastic housing with metal mounting plate
• Mounting options: DIN rail
• Network interface: (4) 1 Gbit/s Ethernet
• Max power consumption: 40 W
• Power supply method: 802.3bt PoE
• Input relays: REX - Request to Exit; REN - Request to Enter; REL - Remote Trigger; DPS - Door Position Sensor
• Dry output relays: Lock: Rated voltage 30 V DC, up to 1 A; Aux: Rated voltage 30 V DC, up to 1 A
• Power-driven output relays: Lock: 12 V DC, up to 1 A; Aux: 12 V DC, up to 0.33 A; Line: 12 V DC, up to 0.33 A
• LEDs: (1) System, (3) PoE Out, (4) Input, (2) Output relays, (1) 12 V DC Out
• Buttons: Terminal blocks, Reset
• Operating temperature: 0°C to 40°C (32°F to...).
