Ubiquiti UACC-OM-SM-1G-S-2
tonight with flash delivery
the day after tomorrow with standard delivery
to check if flash delivery is available to you.
Product details

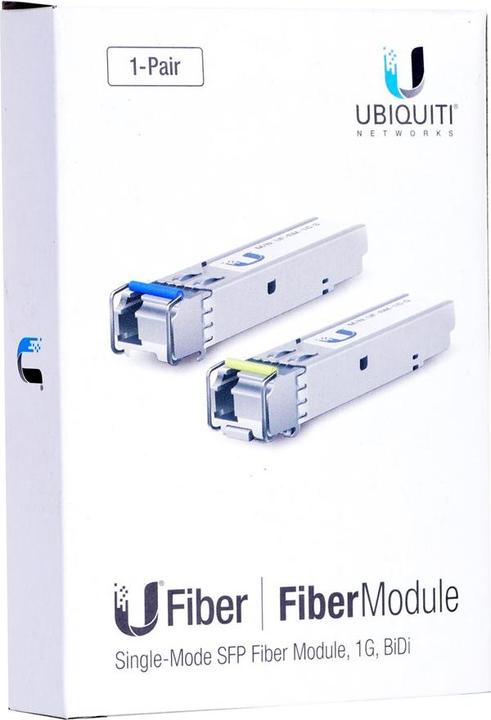

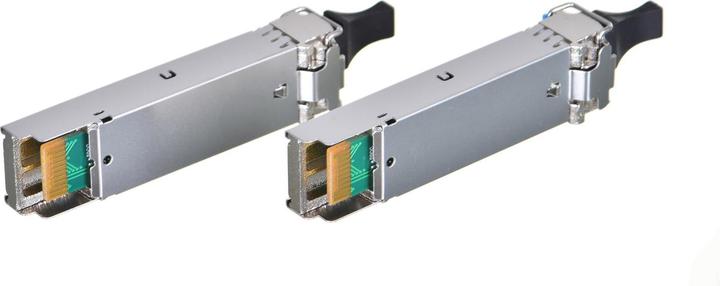

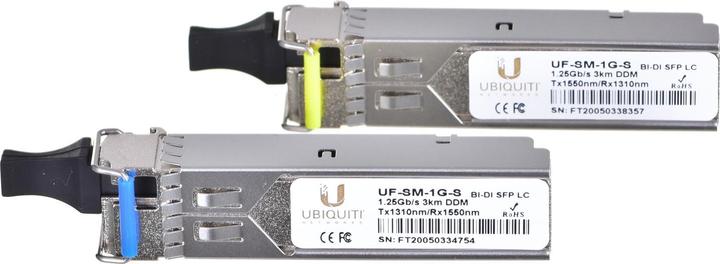

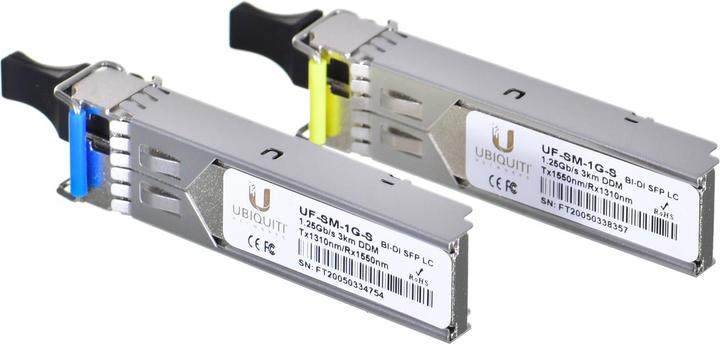

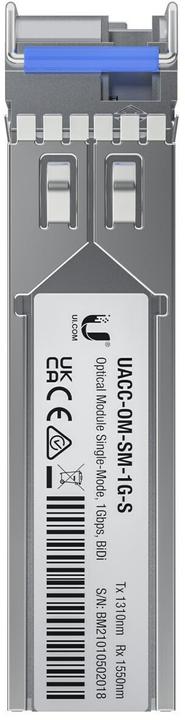

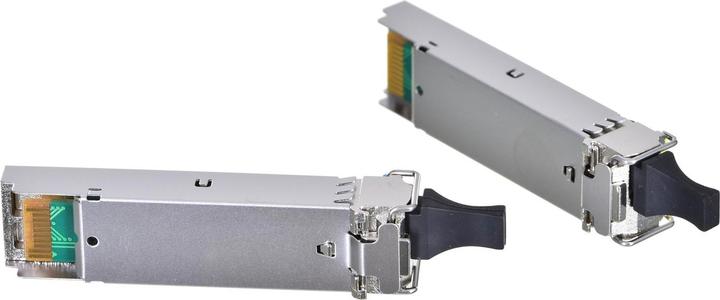

UACC-OM-SM-1G-S-2 - Optical Module Single-Mode Module, 1Gbps, BiDi, 2-Pack
The 1 Gbps Bidirectional Single-Mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances
The 1 Gbps Bidirectional Single-Mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances
up to 3 kilometers.
- Supported media: Single-mode fiber
- Connector type: (1) LC
- BiDi: Yes
- TX wavelength*: Blue latch: 1310 nm; Yellow latch: 1550 nm
- RX Wavelength*: Blue latch: 1550 nm; Yellow latch: 1310 nm
- Data rate: 1.25 Gbps
- Max. power consumption: 0.66 W
- Cable distance: 3 km
- Operating temperature: 0°C to 70°C (32°F to 158°F)
- Pack options: 2-pack, 20-pack
- WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
*It must be used in pairs (blue latch and yellow latch).
- Supported media: Single-mode fiber
- Connector type: (1) LC
- BiDi: Yes
- TX wavelength*: Blue latch: 1310 nm; Yellow latch: 1550 nm
- RX Wavelength*: Blue latch: 1550 nm; Yellow latch: 1310 nm
- Data rate: 1.25 Gbps
- Max. power consumption: 0.66 W
- Cable distance: 3 km
- Operating temperature: 0°C to 70°C (32°F to 158°F)
- Pack options: 2-pack, 20-pack
- WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
*It must be used in pairs (blue latch and yellow latch).
| Module type | SFP |
| Wavelength | 1550 nm |
| Transmission | Single Mode |
| Item number | 22432068 |
| Manufacturer | |
| Category | |
| Manufacturer no. | UACC-OM-SM-1G-S-2 |
| Release date | 15.8.2022 |
| Sales rank in Category Transceivers | |
| External links | |
| Maximum order quantity | 27 |
| Colour group | Silver |
| Exact colour description | Aluminium, Blue, Stainless steel, Yellow |
| Module type | SFP |
| Transmission | Simplex |
| Wavelength | 1550 nm |
| Max. Transmission range | 3000 m |
| Transmission | Single Mode |
| Interface | LC |
| Compatible brands | Ubiquiti |
| Data throughput | 1 Gbit/s |
| Country of origin | China |
| Scope of delivery | 1x A Module, 1x B modules |
| Length | 80 mm |
| Width | 20 mm |
| Height | 110 mm |
| Weight | 62 g |
| Length | 10.60 cm |
| Width | 7 cm |
| Height | 1.70 cm |
| Weight | 61 g |
